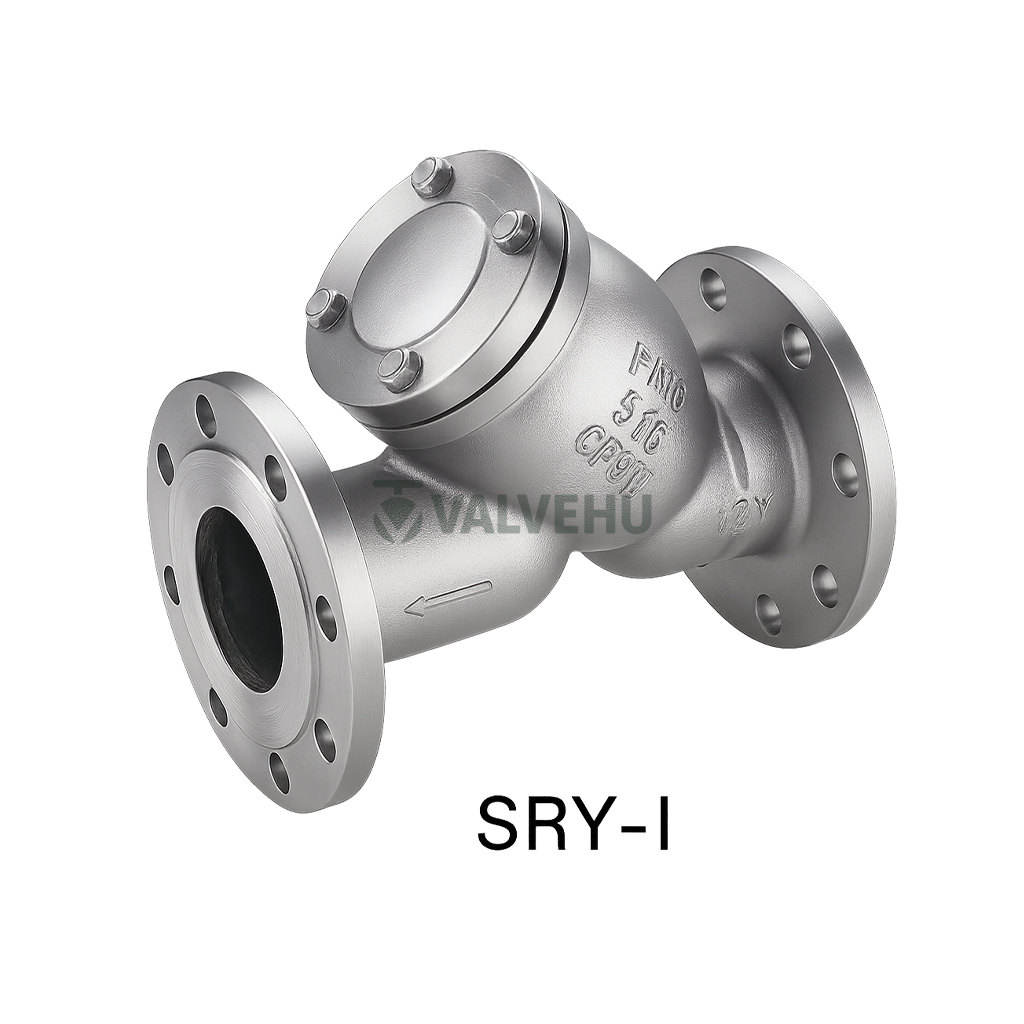

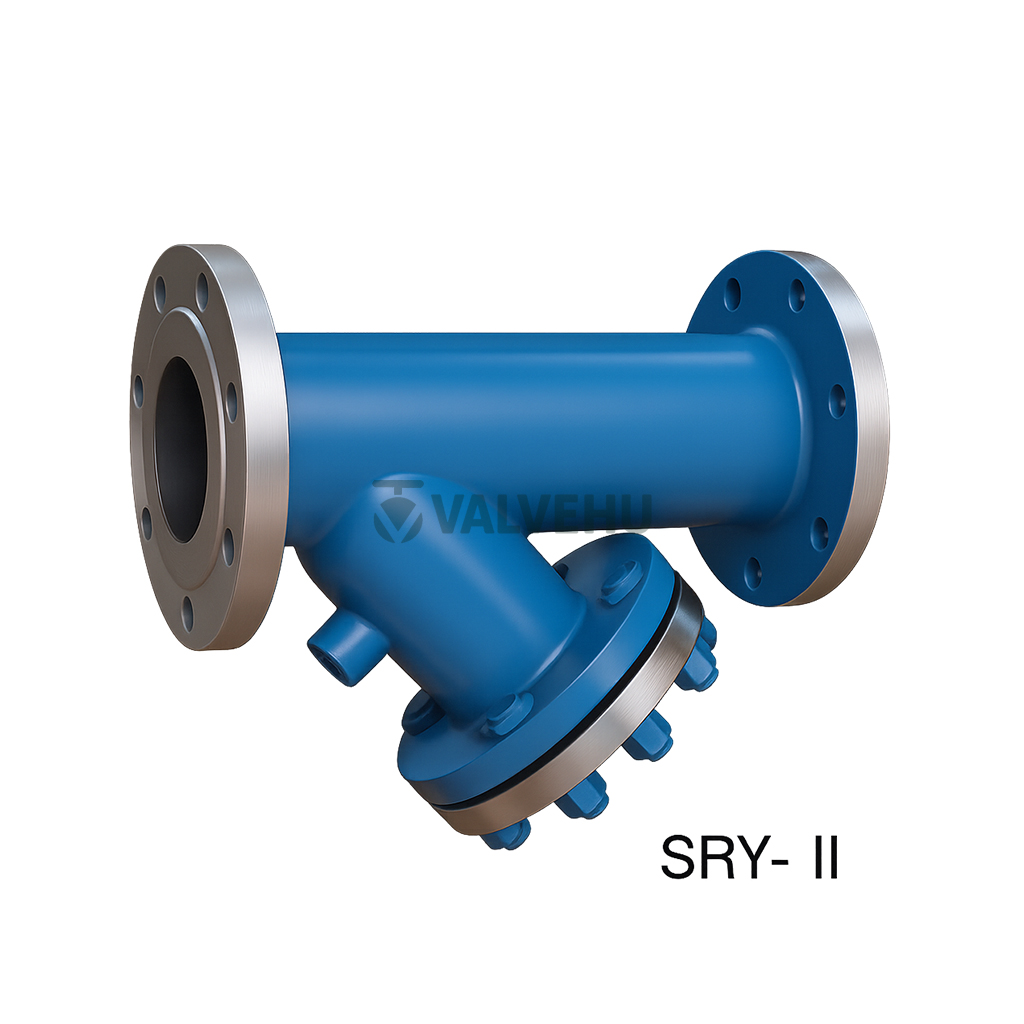

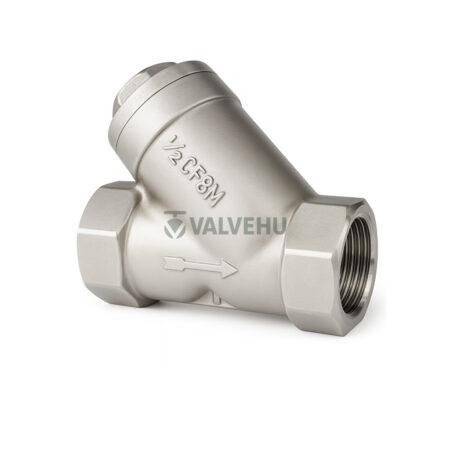

Buy Y-Type Strainer SRY-I/SRY-II PN16/PN25 Stainless Steel Flanged Manual Operation
The VALVEHU SRY Series Y-Type Strainer is engineered for high-efficiency filtration in fluid and gas pipelines, offering reliable protection for downstream components such as pumps, flow meters, control valves, and instrumentation. This Y-shaped strainer is ideal for applications involving steam, gas, or liquids, particularly where impurities must be removed to ensure system integrity and stability.
Designed with versatility in mind, the SRY strainer is available in sizes from DN15 to DN2000, handling pressures up to 42.0 MPa. It is built with premium materials such as SS304, SS316L, TA2, PP, PTFE, and PVC, ensuring durability across corrosive and high-temperature environments from -80°C to +500°C. The filter mesh options provide precision with filtration ratings ranging from 10μm to 500μm, suitable for industrial-grade fine filtration.
The valve body is manufactured using cast steel, forged steel, or stainless steel, and supports flanged, welded, or threaded connections according to international standards (ANSI, GB, JIS, DIN). The sealing components and gaskets are crafted from high-grade PTFE, rubber composites, or graphite, ensuring tight shut-off and reduced maintenance.
Filter element cleaning and replacement are easy due to the ergonomic design. VALVEHU ensures the SRY strainer meets SH/T3411-2017 and HG/T21637-2021 standards.
Whether used for steam traps, cooling systems, or petrochemical lines, this Y-strainer offers unmatched efficiency, reliability, and flow capacity. For tailored valve solutions or further assistance with product selection, connect with our expert team at VALVEHU China today. We’re here to support your next industrial project with dependable engineering solutions.
Technical Specifications
Valve Type: Y-Type Strainer
Model: SRY-I / SRY-II
Size Range: DN15 to DN2000
Pressure Rating: ≤42.0 MPa
Temperature Range: -80°C to +500°C
Body Material: SS304, SS316L, TA2, PP, PTFE, PVC
Connection Type: Flanged, Welded, Threaded
Sealing Material: PTFE, Metal wire, Graphite, Rubber
Filter Accuracy: 10μm to 500μm
Standards: SH/T3411-2017, HG/T21637-2021
Technical Specifications – SRY Y-Type Strainer
| Parameter | SRY Model |
|---|---|
| Size Range | DN15 ~ DN2000 |
| Nominal Pressure | ≤2500LB or ≤42.0MPa |
| Body Material | CS, SS304, SS316L, TA2, Lined, All-Plastic |
| Filter Element Material | SS304, SS316L, TA2, PP, PTFE, PVC |
| Gasket Material | PTFE, Metal Wire, Graphite, Silicone Rubber, EPDM, Fluorine Rubber |
| Filtration Accuracy | 10μm ~ 500μm |
| Working Medium | Liquid, Gas |
| Connection Type | Flanged, Butt Welded, Threaded |
| Flange Standards | HG, GB, JB, ANSI, JIS, DIN |
| Sealing Face Type | RF, FF, M, FM, G, T, RJ |
| Surface Treatment | CS: Painted; SS: Pickled, Sandblasted, Polished |
| Execution Standards | SH/T3411-2017, HG/T21637-2021 |
Installation Dimensions – Y-Type Strainer (Unit: mm)
| Pressure Rating (MPa) | Nominal Diameter DN (mm) | L | D | D1 | D2 | D6 | b-f | f2 | Z-φd |
|---|---|---|---|---|---|---|---|---|---|
| PN16 | 15 | 130 | 95 | 65 | 45 | 14-2 | 4-φ14 | ||
| 20 | 150 | 105 | 75 | 55 | 14-2 | 4-φ14 | |||
| 25 | 160 | 115 | 85 | 65 | 14-2 | 4-φ14 | |||
| 32 | 165 | 135 | 100 | 78 | 16-2 | 4-φ18 | |||
| 40 | 200 | 145 | 110 | 85 | 16-3 | 4-φ18 | |||
| 50 | 220 | 160 | 125 | 100 | 16-3 | 4-φ18 | |||
| 65 | 250 | 180 | 145 | 120 | 18-3 | 4-φ18 | |||
| 80 | 280 | 195 | 160 | 135 | 20-3 | 8-φ18 | |||
| 100 | 320 | 215 | 180 | 155 | 20-3 | 8-φ18 | |||
| 125 | 340 | 245 | 210 | 185 | 22-3 | 8-φ18 | |||
| 150 | 380 | 280 | 240 | 210 | 24-3 | 8-φ23 | |||
| 200 | 480 | 335 | 295 | 265 | 26-3 | 12-φ23 | |||
| 250 | 550 | 405 | 355 | 320 | 30-3 | 12-φ26 | |||
| 300 | 610 | 460 | 410 | 375 | 30-4 | 12-φ26 | |||
| 350 | 690 | 520 | 470 | 435 | 34-4 | 16-φ26 | |||
| 400 | 880 | 580 | 525 | 485 | 36-4 | 16-φ30 | |||
| 450 | 880 | 640 | 585 | 545 | 40-4 | 20-φ30 | |||
| 500 | 980 | 705 | 650 | 608 | 44-4 | 20-φ34 | |||
| PN25 | 15 | 130 | 95 | 65 | 45 | 16-2 | 4-φ14 | ||
| 20 | 150 | 105 | 75 | 55 | 16-2 | 4-φ14 | |||
| 25 | 160 | 115 | 85 | 65 | 16-2 | 4-φ14 | |||
| 32 | 165 | 135 | 100 | 78 | 18-2 | 4-φ18 | |||
| 40 | 200 | 145 | 110 | 85 | 18-3 | 4-φ18 | |||
| 50 | 220 | 160 | 125 | 100 | 20-3 | 4-φ18 | |||
| 65 | 250 | 180 | 145 | 120 | 22-3 | 8-φ18 | |||
| 80 | 280 | 195 | 160 | 135 | 22-3 | 8-φ18 | |||
| 100 | 320 | 230 | 190 | 160 | 24-3 | 8-φ23 | |||
| 125 | 340 | 270 | 220 | 188 | 28-3 | 8-φ26 | |||
| 150 | 380 | 300 | 250 | 218 | 30-3 | 8-φ26 | |||
| 200 | 480 | 360 | 310 | 278 | 34-3 | 12-φ26 | |||
| 250 | 550 | 425 | 370 | 332 | 36-3 | 12-φ30 | |||
| 300 | 610 | 485 | 430 | 390 | 40-4 | 16-φ30 | |||
| 350 | 690 | 550 | 490 | 448 | 44-4 | 16-φ34 | |||
| 400 | 880 | 610 | 550 | 505 | 48-4 | 16-φ36 | |||
| 450 | 880 | 660 | 600 | 555 | 50-4 | 20-φ36 | |||
| 500 | 980 | 730 | 660 | 610 | 52-4 | 20-φ41 |
