Buy Stainless Steel H12W-16P Check Valve PN16 Internal Thread Spring Type Vertical Design

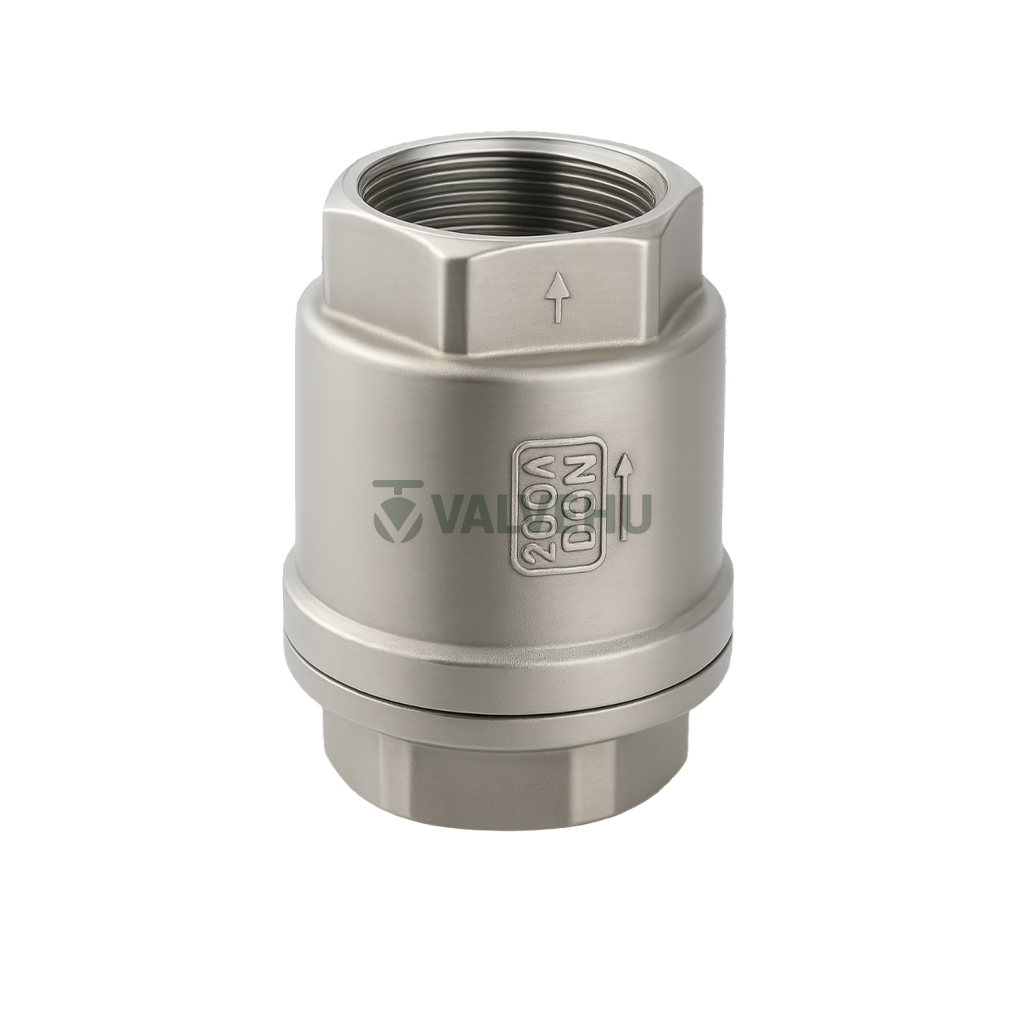

The H12W-16P Vertical Spring Check Valve by VALVEHU is a high-performance stainless steel valve designed for vertical pipeline installations in demanding industrial environments. This spring-loaded non-return valve ensures efficient one-way flow of media such as water, oil, and other non-corrosive or mildly corrosive liquids, up to a maximum operating pressure of 16MPa.
Manufactured using high-grade materials including brass, SS304, SS316, and SS316L, this check valve delivers excellent corrosion resistance and long service life in temperatures up to 300°C. The threaded connection (ZG standard) makes it suitable for easy installation in compact piping systems where space is a constraint. Common applications include chemical processing, fluid distribution, HVAC systems, and high-pressure water lines.
The compact design features a built-in spring mechanism that provides quick closing action, minimizing backflow and water hammer. Its vertical orientation is optimized for systems requiring vertical flow control, maintaining steady pressure and safe system performance. With size availability ranging from DN15 to DN50 and standard thread sizes from 1/2″ to 2″, this valve is flexible across a wide range of flow capacities.
The H12W-16P is precision-engineered to comply with industry standards for performance and reliability. The detailed dimensions (H & L) ensure compatibility with global pipeline designs and installations.
Whether you are looking to upgrade existing pipeline systems or integrate reliable backflow protection into new installations, this vertical check valve delivers functionality and efficiency. For consultation, technical assistance, or bulk inquiries, contact our expert team at VALVEHU in China. We are committed to helping you select the right valve for your specific needs.
Technical Specifications
Model: H12W-16P
Type: Vertical Spring Check Valve
Body Material: Brass, SS304, SS316, SS316L
Thread Standard: ZG
Working Pressure: PN0.6–16MPa
Working Temperature: ≤300°C
Media Compatibility: Water, oil, non-corrosive liquids
Flow Direction: One-way (vertical installation only)
Connection Type: Female threaded
Sizes Available: DN15 to DN50 (1/2″ to 2″)
Main Connection Dimensions (Unit: mm)
| Nominal Diameter DN (mm) | Thread Size ZG (inches) | Height H (mm) | Length L (mm) |
|---|---|---|---|
| 15 | 1/2 | 73 | 43 |
| 20 | 3/4 | 85 | 48 |
| 25 | 1 | 95 | 55 |
| 32 | 1–1/4 | 113 | 73 |
| 40 | 1–1/2 | 138 | 86 |
| 50 | 2 | 156 | 98 |
FAQ
What is the working pressure range of the H12W-16P check valve?
The valve operates efficiently between 0.6 MPa and 16 MPa.
Is the H12W-16P suitable for high-temperature applications?
Yes, it handles temperatures up to 300°C.
What materials are used in the construction of this valve?
The valve is made from brass, stainless steel 304, 316, and 316L.
Can this check valve be installed horizontally?
No, it is specifically designed for vertical installation only.
Which industries commonly use this vertical check valve?
It is ideal for chemical, water treatment, and industrial fluid systems.
