Buy Compact Wafer Ball Valve Q71F/Q971F PN1.6–2.5MPa Stainless Steel Electric Operated

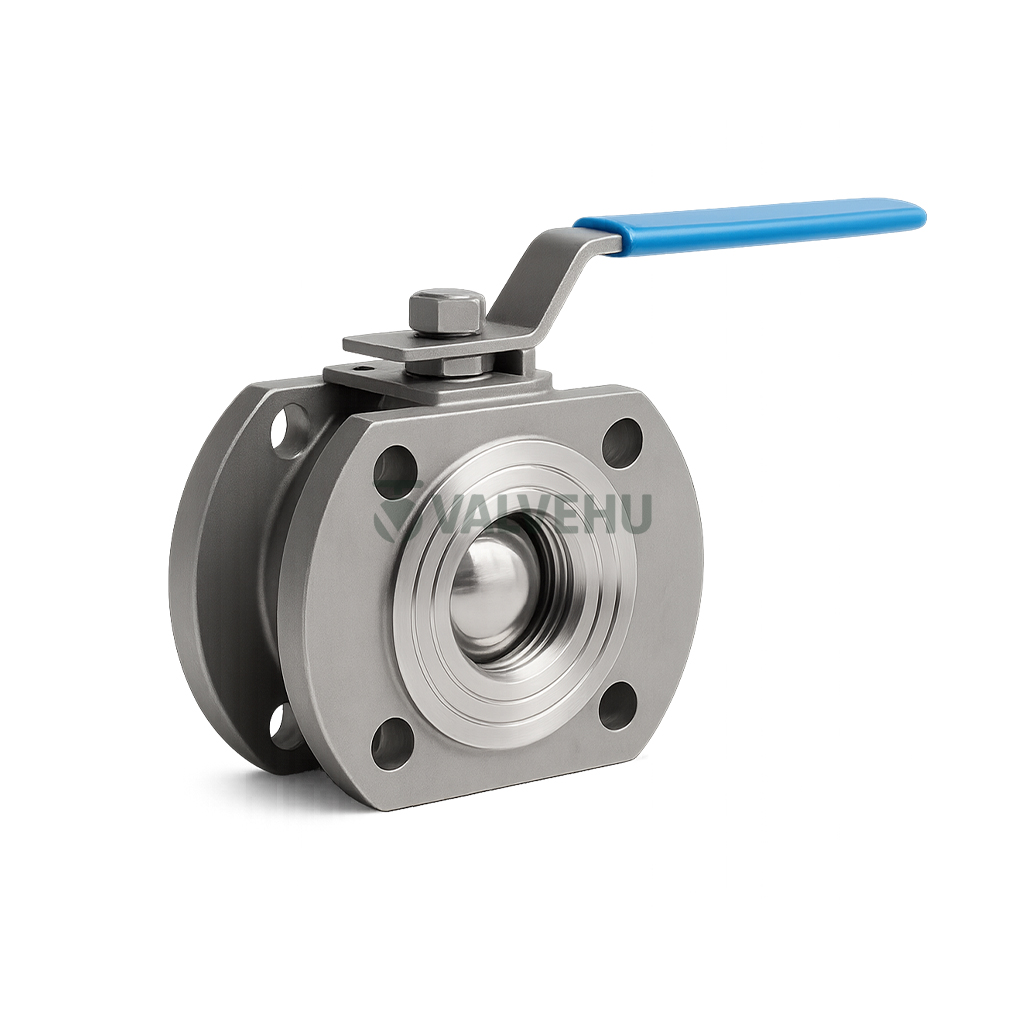

The ultra-thin wafer type ball valve from VALVEHU is engineered for compact, high-performance fluid control in pipelines with space or weight constraints. Designed under models Q71F, Q371F, and Q971F, this valve features a reliable ball mechanism, quick shut-off capabilities, and a space-saving wafer design — making it ideal for various industrial applications including chemical processing, water treatment, oil & gas, and HVAC systems.
This valve supports a pressure range of PN1.6 to 2.5 MPa, accommodating both medium and high-pressure flow environments. The body materials available are WCB (carbon steel), CF8 (304 stainless steel), and CF8M (316 stainless steel) — ensuring excellent resistance to corrosion, wear, and chemical aggression.
Internally, both the ball and stem are made of stainless steel variants such as 06Cr19Ni10 or 06Cr17Ni12Mo2, delivering robust torque performance and durability. PTFE (Polytetrafluoroethylene) is used for the seat and packing, ensuring minimal friction, excellent sealing, and chemical inertness.
Its wafer connection type makes it easy to install between flanges, reducing assembly time and maintenance efforts. Available sizes range from DN15 to DN125, and structural lengths vary between 35mm to 200mm, based on nominal diameter.
This compact ball valve is available in manual handle, gear-operated, and electric-actuated models, giving flexibility across automation levels.
If you’re looking for a reliable and compact solution to integrate into your pipeline system, this wafer-type ball valve is a strong contender. For expert consultation and product support, feel free to contact VALVEHU’s specialists in China. We’re ready to support your industrial valve needs with efficiency and accuracy.
Technical Specifications
Valve Type: Ultra-thin wafer ball valve
Pressure Range: PN1.6 to 2.5 MPa
Body Materials: WCB, CF8, CF8M
Seat Material: PTFE
Connection Type: Wafer
Structure Length: 35–200 mm
Size Range: DN15 to DN125
Operation Type: Manual, gear, electric
Ball & Stem: 06Cr19Ni10 / 06Cr17Ni12Mo2 stainless steel
Application: Industrial flow control for water, steam, oil, and chemicals
Main Component Materials (Q41F–25, 25P, 25R, 40, 40P, 40R)
| Part Name | Q41F–25, 40 | Q41F–25P, 40P | Q41F–25R, 40R |
|---|---|---|---|
| Body | WCB | CF8 | CF8M |
| Ball | 06Cr19Ni10 | 06Cr19Ni10 | 06Cr17Ni12Mo2 |
| Stem | 06Cr19Ni10 | 06Cr19Ni10 | 06Cr17Ni12Mo2 |
| Seat | PTFE | PTFE | PTFE |
| Packing | PTFE | PTFE | PTFE |
Main Overall and Connection Dimensions (PN1.6~2.5MPa) (Unit: mm)
| DN (Nominal Diameter) | 15 | 20 | 25 | 32 | 40 | 50 | 65 | 80 | 100 | 125 |
|---|---|---|---|---|---|---|---|---|---|---|
| Face-to-Face Length (L) | 35 | 38 | 42 | 50 | 60 | 70 | 94 | 118 | 140 | 200 |
FAQ
What is a wafer type ball valve used for?
Wafer ball valves are used in pipelines with limited space, offering compact shut-off functionality in water, chemical, and oil systems.
What is the pressure rating of this ultra-thin ball valve?
The valve operates effectively under pressure ranges of PN1.6 to PN2.5 MPa.
Which industries commonly use Q71F/Q371F/Q971F wafer ball valves?
These valves are ideal for chemical processing, HVAC, power plants, and water treatment systems.
What are the advantages of PTFE seats in this valve?
PTFE provides low friction, high chemical resistance, and tight sealing performance.
Can this valve be automated?
Yes, the valve is available with manual handles, gear operation, or electric actuators for automation.
