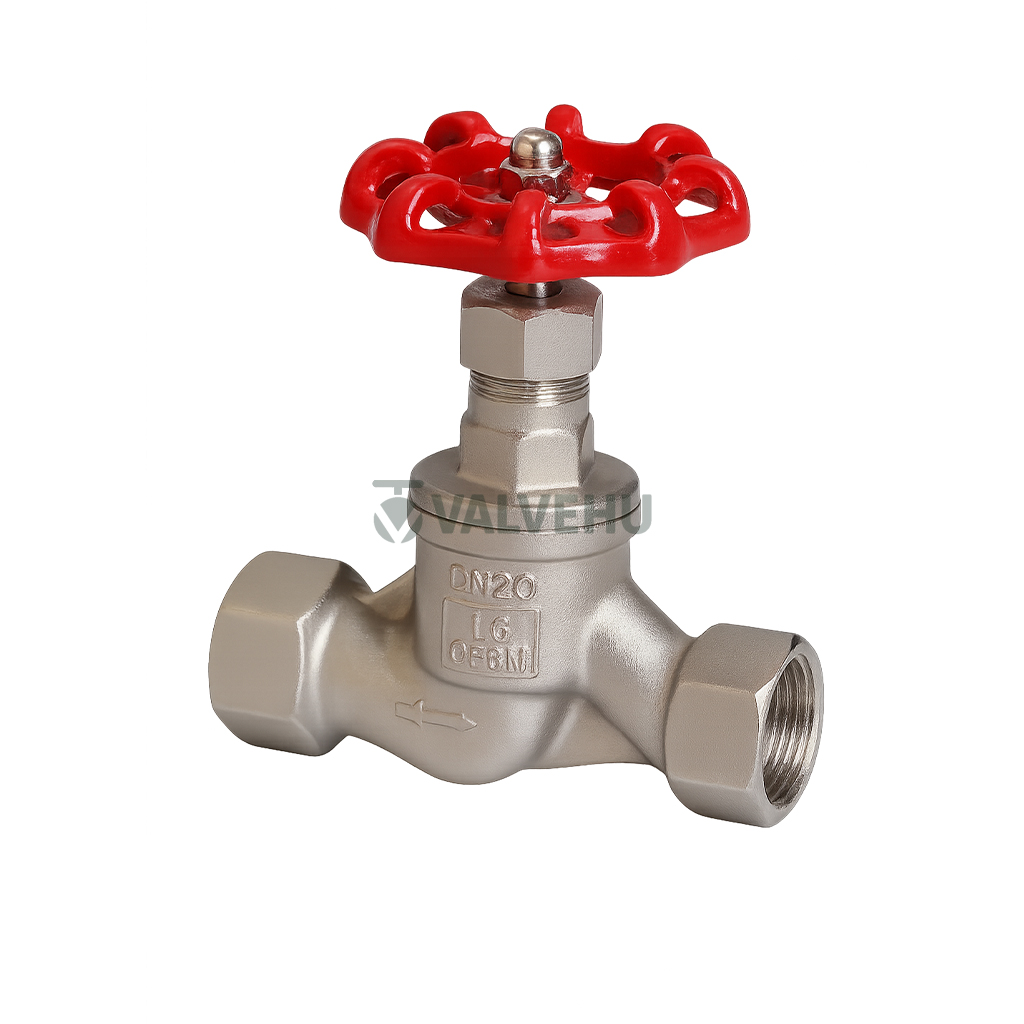

Buy Globe Valve J11W Series PN16-160 Stainless Steel Threaded Manual Type
The J11W-PN16~160 Stainless Steel Globe Valve from VALVEHU is a highly reliable solution engineered for industrial applications requiring tight flow control under medium to high pressure. Designed with a threaded end and handwheel operation, this internal screw type globe valve ensures precise shut-off and throttling, making it ideal for pipelines transporting water, oil, gas, and select corrosive media.
This industrial valve is manufactured in compliance with multiple pressure classes ranging from PN1.6 to PN16.0 MPa, providing flexibility across various operating conditions. It undergoes rigorous pressure testing (including strength and sealing tests) and is rated for low-pressure air sealing at 0.6 MPa. The operating temperature range spans from -20°C to 180°C, ensuring dependable performance in demanding environments.
Built from corrosion-resistant stainless steel, the valve body offers excellent durability and chemical compatibility, especially useful in chemical, petrochemical, and general industrial service. It supports multiple media types such as acids, alkalis, and industrial water, identified by the J11W-(16~64)C/P/R variants.
The handwheel-operated rising stem mechanism provides intuitive operation with clear visual position indication. The valve’s compact body and precision-machined sealing surfaces reduce flow resistance while enhancing shut-off reliability.
Whether you’re upgrading existing systems or specifying components for new installations, this globe valve is a robust, maintenance-friendly choice that balances performance, safety, and longevity.
If you’re unsure which pressure class or size is suitable for your application, the VALVEHU technical team in China is ready to assist with product selection and customization for your unique needs.
Technical Specifications
- Valve Type: Globe Valve
- Model Code: J11W-PN16~160
- Body Material: Stainless Steel
- Nominal Pressure: PN1.6 to PN16.0 MPa
- Connection Type: Internal Threaded (Screwed Ends)
- Seal Test Pressure: 0.6 MPa (air)
- Working Temperature: -20°C to 180°C
- Media Compatibility: Water, Oil, Gas, Acids, Alkalis
- Operation: Manual Handwheel with Rising Stem
- Standards: Complies with industrial valve series specifications

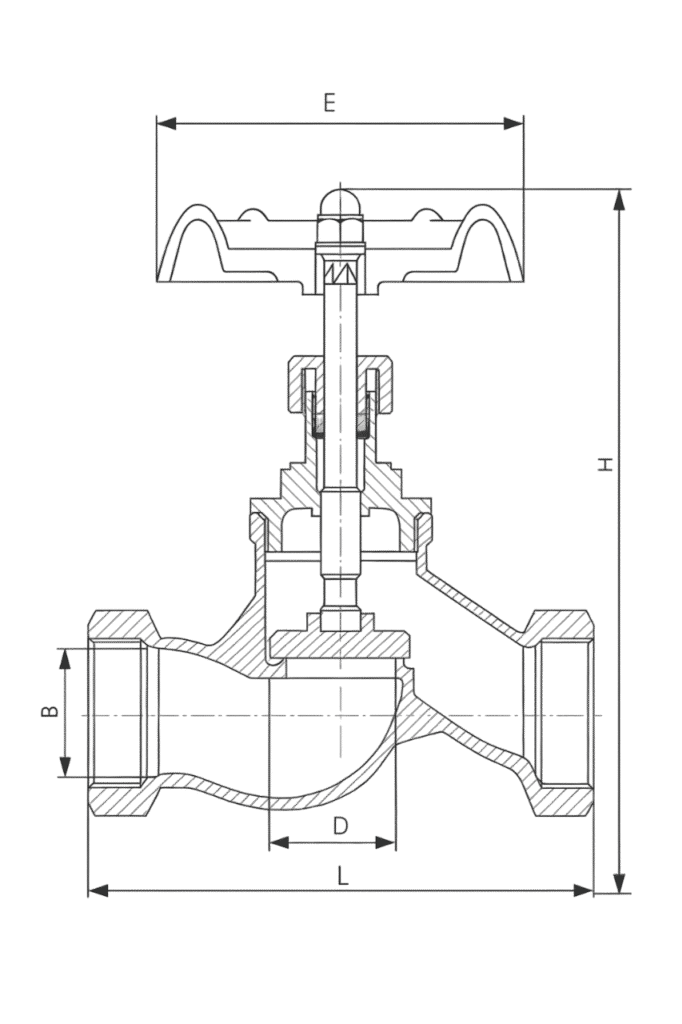

Main Connection Dimensions (Unit: mm)
| Nominal Diameter DN (mm) | Face-to-Face Length (L) | Inner Bore Diameter (D) | Stem Diameter (B) | Total Height (H) | Handwheel Diameter (E) |
|---|---|---|---|---|---|
| 15 | 90 | 13 | 16 | 104 | 72 |
| 20 | 100 | 16 | 19 | 110 | 72 |
| 25 | 120 | 20 | 25 | 124 | 80 |
| 32 | 140 | 30 | 33 | 145 | 100 |
| 40 | 165 | 36 | 40 | 165 | 108 |
| 50 | 190 | 42 | 50 | 192 | 130 |
FAQ
What media can this globe valve handle?
It is compatible with water, oil, gas, and certain corrosive liquids like acids and alkalis.
What is the pressure rating range for the J11W valve?
This model supports working pressures from PN1.6 MPa to PN16.0 MPa.
What type of connection does this valve have?
It features internal threaded (screwed) connections, compatible with NPT/BSP standards.
What is the maximum operating temperature?
The valve operates safely up to 180°C, suitable for industrial thermal systems.
How can I choose the right size or pressure class?
Contact the expert team at VALVEHU for professional guidance and configuration support.
