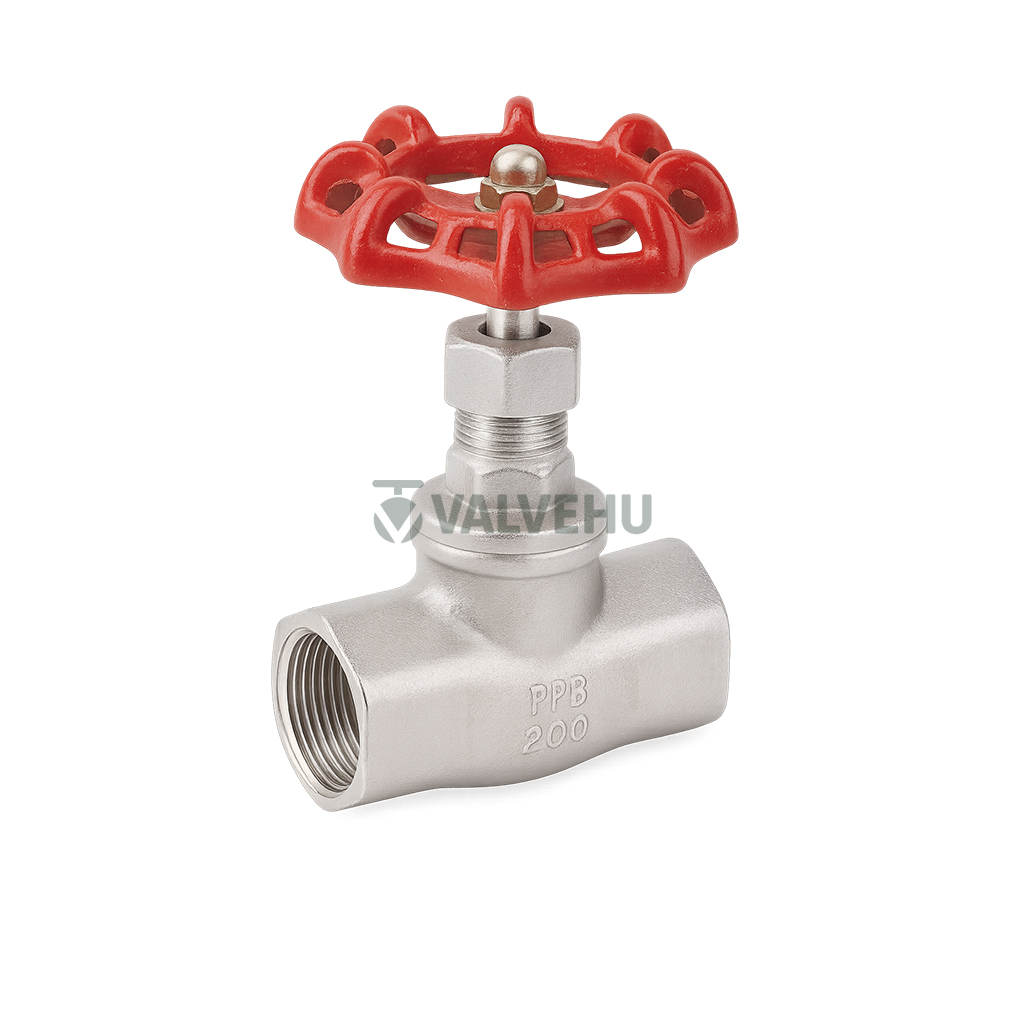

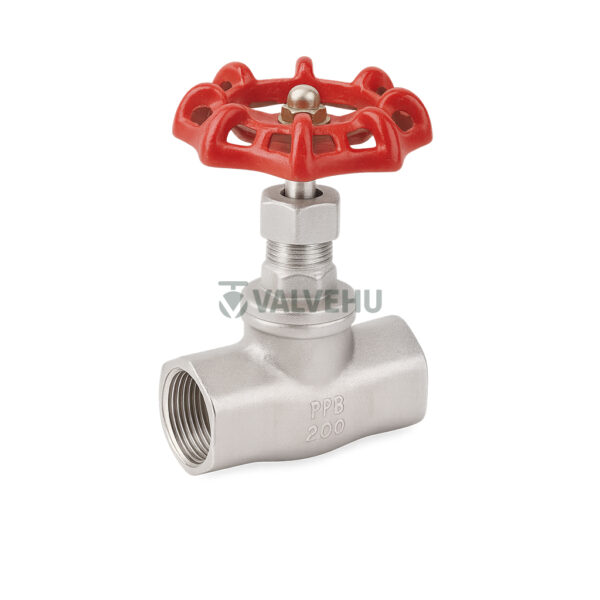

Buy Stainless Steel Globe Valve J11W-16P PN1.6~4.0 BSP/NPT Threaded Handwheel Operated
The VALVEHU J11W–PN16~160 stainless steel globe valve is a high-performance internal threaded stop valve engineered for demanding industrial applications. Manufactured with precision, this model supports nominal pressures ranging from PN1.6 to 16.0MPa and is suitable for a wide range of media including water, oil, air, and certain acid solutions. It offers excellent performance under varying operating conditions, withstanding temperatures from -20°C up to 180°C.
Designed with a robust internal structure and reliable sealing, this threaded shut-off valve ensures zero leakage in critical applications. The valve body is available in multiple material grades and is resistant to corrosion, making it ideal for both neutral and corrosive fluid systems. Thread compatibility includes BSPT, BSP, and NPT standards in accordance with DIN259/2999, offering broad connection versatility.
The compact build with optimized dimensions (DN15–DN50) provides easy integration into pipeline systems. Common use cases span sectors such as chemical processing, petrochemical, HVAC systems, and clean water supply systems. The smooth handwheel operation and internal stem mechanism ensure reliable flow control even under high pressure.
Whether you need a control solution for standard fluids or mildly corrosive mediums, this shut-off valve from VALVEHU guarantees durability, performance, and safety. For tailored valve solutions and expert guidance, feel free to contact the technical sales team at VALVEHU in China. We are ready to support your project with quality industrial valves.
Technical Specifications
Model: J11W–(16~64)
Nominal Pressure: PN1.6 to 16.0MPa
Shell Test Pressure: 2.4, 3.8, 6.0, 9.6MPa
Low-Pressure Seal Test: 0.6MPa
Applicable Media: Water, oil, air, mild acids
Applicable Temperature: -20°C to 180°C
Body Material: Stainless steel
Connection Type: BSPT, BSP, NPT (DIN259/2999)
Nominal Diameter Range: DN15 to DN50
Operation Method: Manual handwheel
Main Connection Dimensions and Weight (Unit: mm)
| Size (G) | Length (L) | Port Diameter (E) | Body Width (B) | Height (H) | Handwheel Diameter (A) | Weight (Kg) |
|---|---|---|---|---|---|---|
| 1/2″ | 90 | 14 | 32 | 109 | 70 | 0.9 |
| 3/4″ | 100 | 16 | 36 | 109 | 70 | 1.1 |
| 1″ | 120 | 18 | 46 | 132 | 80 | 1.8 |
| 1-1/4″ | 140 | 20 | 55 | 156 | 90 | 2.5 |
| 1-1/2″ | 170 | 22 | 65 | 167 | 100 | 3.7 |
| 2″ | 200 | 24 | 80 | 182 | 120 | 5.5 |
| 2-1/2″ | 260 | 26 | 95 | 200 | 140 | 9.3 |
FAQ
What media is this globe valve compatible with?
It supports water, oil, air, and mildly corrosive fluids like organic or inorganic acids.
What pressure ranges does the valve handle?
The valve is rated for PN1.6 to 16.0MPa, making it suitable for both low- and high-pressure pipelines.
Which industries typically use this valve?
Industries such as chemical processing, petrochemical, HVAC, and water systems commonly use it.
Does the valve support international thread standards?
Yes, it supports BSPT, BSP, and NPT threads as per DIN259/2999.
What temperature conditions is the valve designed for?
It operates efficiently within -20°C to 180°C without loss in performance or safety.
