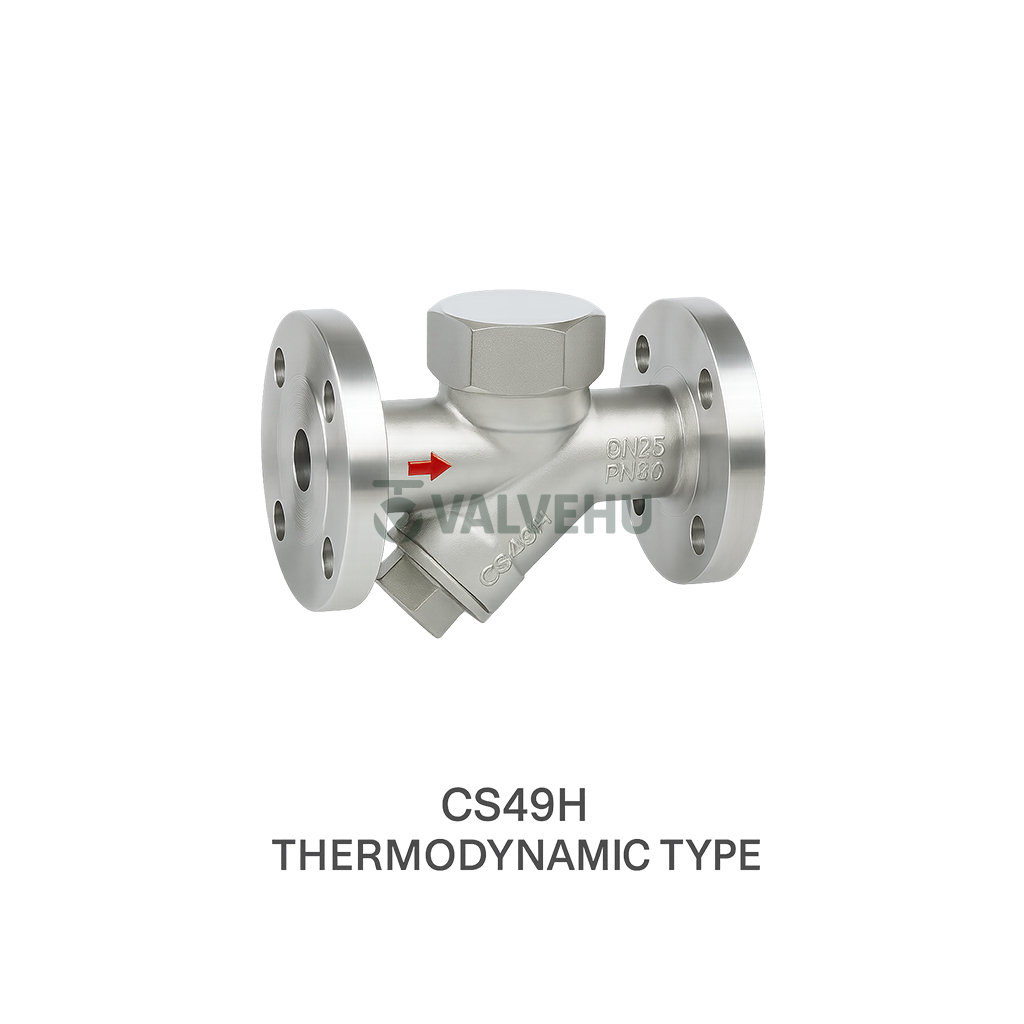

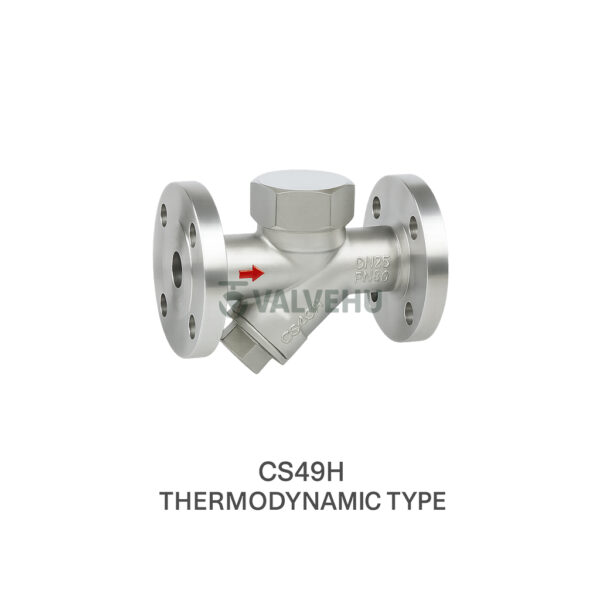

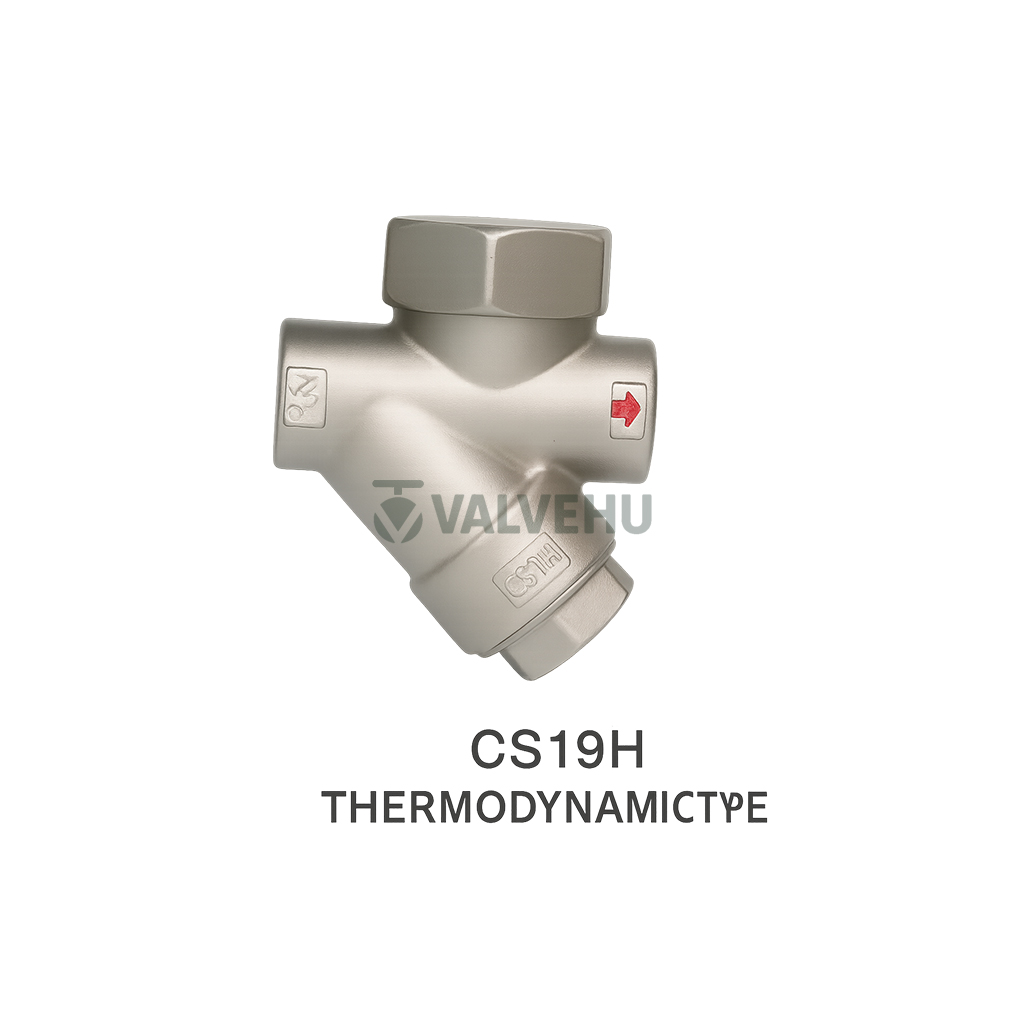

Buy Thermodynamic Steam Trap CS49H/CS19H PN16–40 WCB Flanged Auto-Drain Valve
The Thermodynamic Steam Trap CS49H/CS19H from VALVEHU is a high-performance solution engineered for efficient condensate removal in steam systems. Known for its compact structure, simple maintenance, and high durability, this steam trap operates based on thermodynamic principles, allowing it to discharge condensate while effectively preventing steam loss.
Designed with a robust body, the CS49H and CS19H models are suitable for various industrial environments, including applications with saturated or superheated steam and high back-pressure conditions. Their stainless steel internals ensure resistance to wear and corrosion, while the flanged connection design allows secure and fast installation.

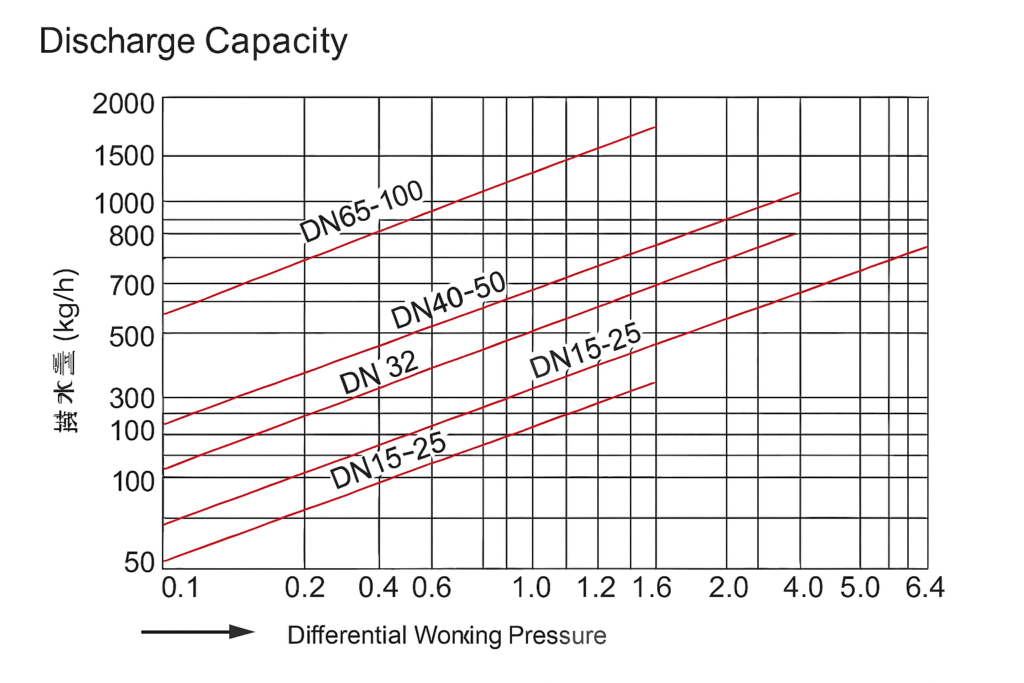

This trap offers precise discharge characteristics as shown in the performance curve, and supports working pressures from PN16 to PN40, accommodating DN15 to DN50 nominal diameters. The design integrates a disc-type mechanism that responds to dynamic pressure and temperature changes, making it highly reliable in fluctuating steam flow conditions.
Its compact layout also minimizes installation space, while ensuring consistent operation under varying loads. The valve’s smooth structure helps reduce noise and water hammer effects, contributing to overall system stability.
Whether used in heating systems, pipelines, or industrial steam supply units, this steam trap ensures energy savings, operational efficiency, and system safety.
For engineers, OEMs, or plant operators searching for dependable steam trap solutions, the CS49H/CS19H series is a proven, reliable choice. For any steam trap valve needs, feel free to consult our experts at VALVEHU in China. We are ready to support your technical and procurement decisions with tailored guidance and sourcing capabilities.
Technical Specifications
Valve Type: Thermodynamic Steam Trap
Model: CS49H / CS19H
Nominal Pressure: PN16 / PN25 / PN40
Connection Type: Flanged
Nominal Diameter: DN15 to DN50
Body Material: Carbon Steel / Cast Steel
Operation Principle: Disc-Type Thermodynamic
Application Media: Saturated and Superheated Steam
Back Pressure Resistance: Suitable for high back-pressure
Flow Direction: Unidirectional condensate discharge
FAQ
What is the working principle of the CS49H/CS19H steam trap?
It uses a thermodynamic disc to respond to steam pressure and temperature changes, automatically releasing condensate.
What pressure ratings are supported?
These traps support PN16, PN25, and PN40 pressure classes, making them suitable for mid to high-pressure systems.
Is this steam trap suitable for superheated steam?
Yes, it is compatible with both saturated and superheated steam applications.
What industries typically use this type of valve?
Common in power plants, HVAC systems, chemical processing, textile, and food industries requiring efficient steam system drainage.
Does this valve reduce energy loss in steam systems?
Absolutely. It minimizes steam leakage and optimizes condensate discharge, enhancing energy efficiency.
