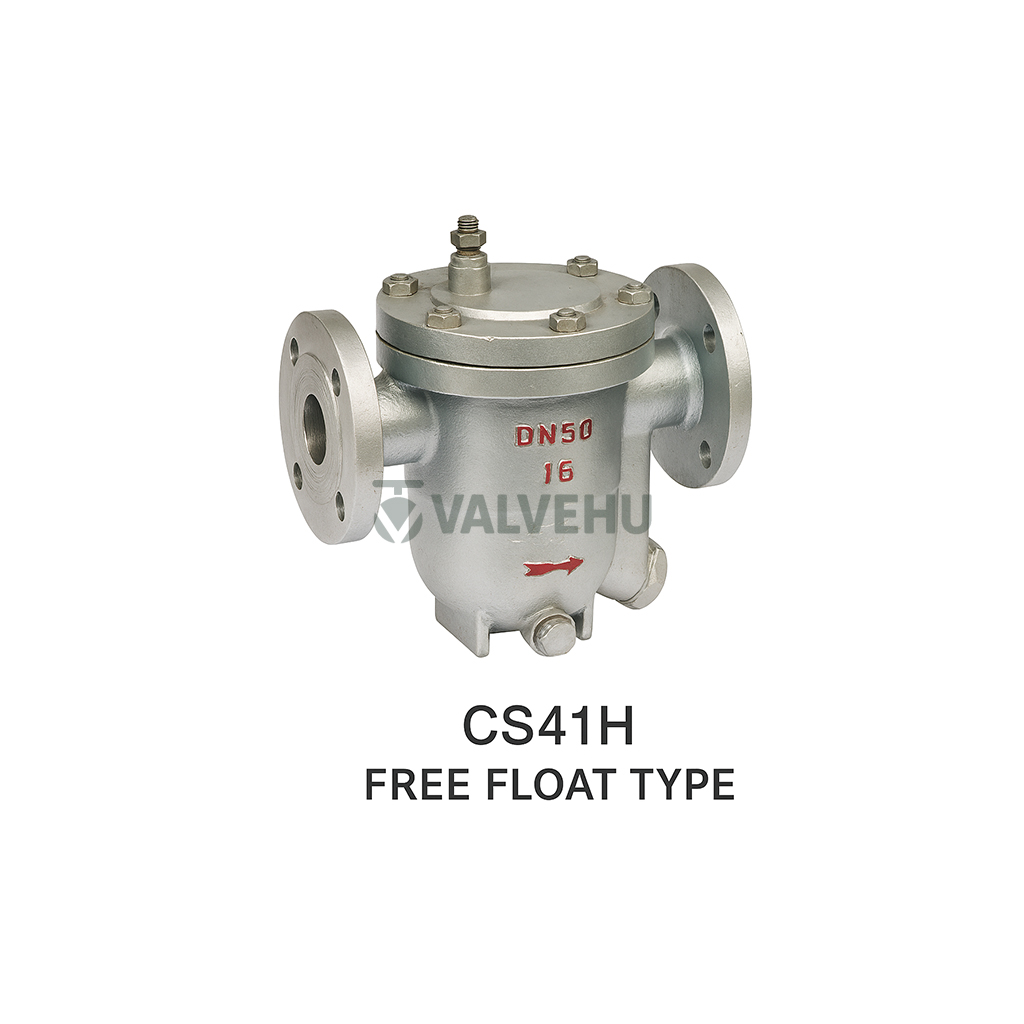

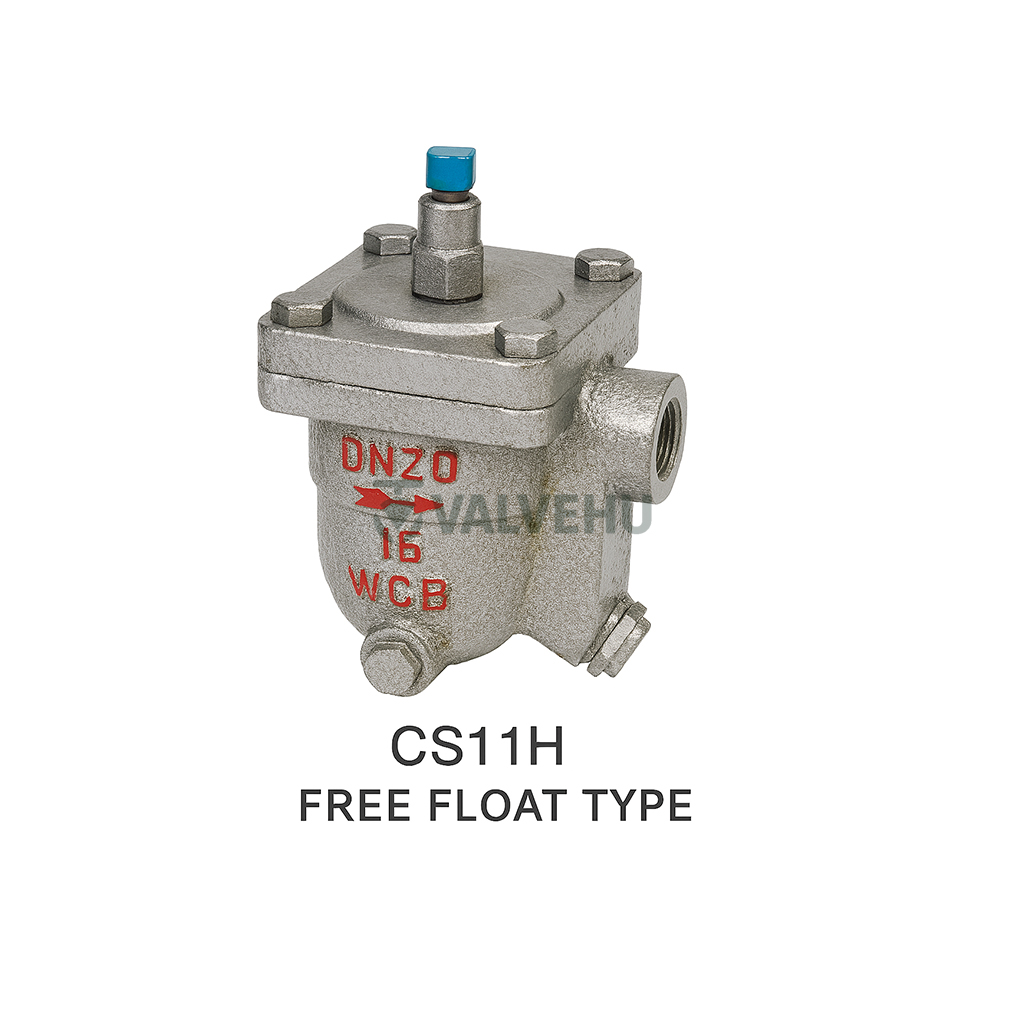

Buy Float Steam Trap Valve CS41H/CS11H PN16 Cast Iron/Steel Flanged Auto-Operated
The CS41H/CS11H Float Steam Trap Valve by VALVEHU is a highly reliable mechanical steam trap designed for efficient condensate discharge in industrial steam systems. Engineered with a precision-machined stainless steel float and internal components, this valve guarantees excellent pressure resistance, corrosion resistance, and long-term durability, even in demanding applications.
This float-type steam trap is equipped with a unique free-floating ball mechanism, ensuring smooth and automatic condensate removal while preventing steam leakage. The valve structure is compact, leakproof, and highly responsive, making it ideal for applications in saturated steam, superheated steam, and high-pressure condensate lines. Available in both cast iron and cast steel bodies, it supports wide pressure ranges and is compatible with working media temperatures up to 200°C for cast iron and 425°C for cast steel units.

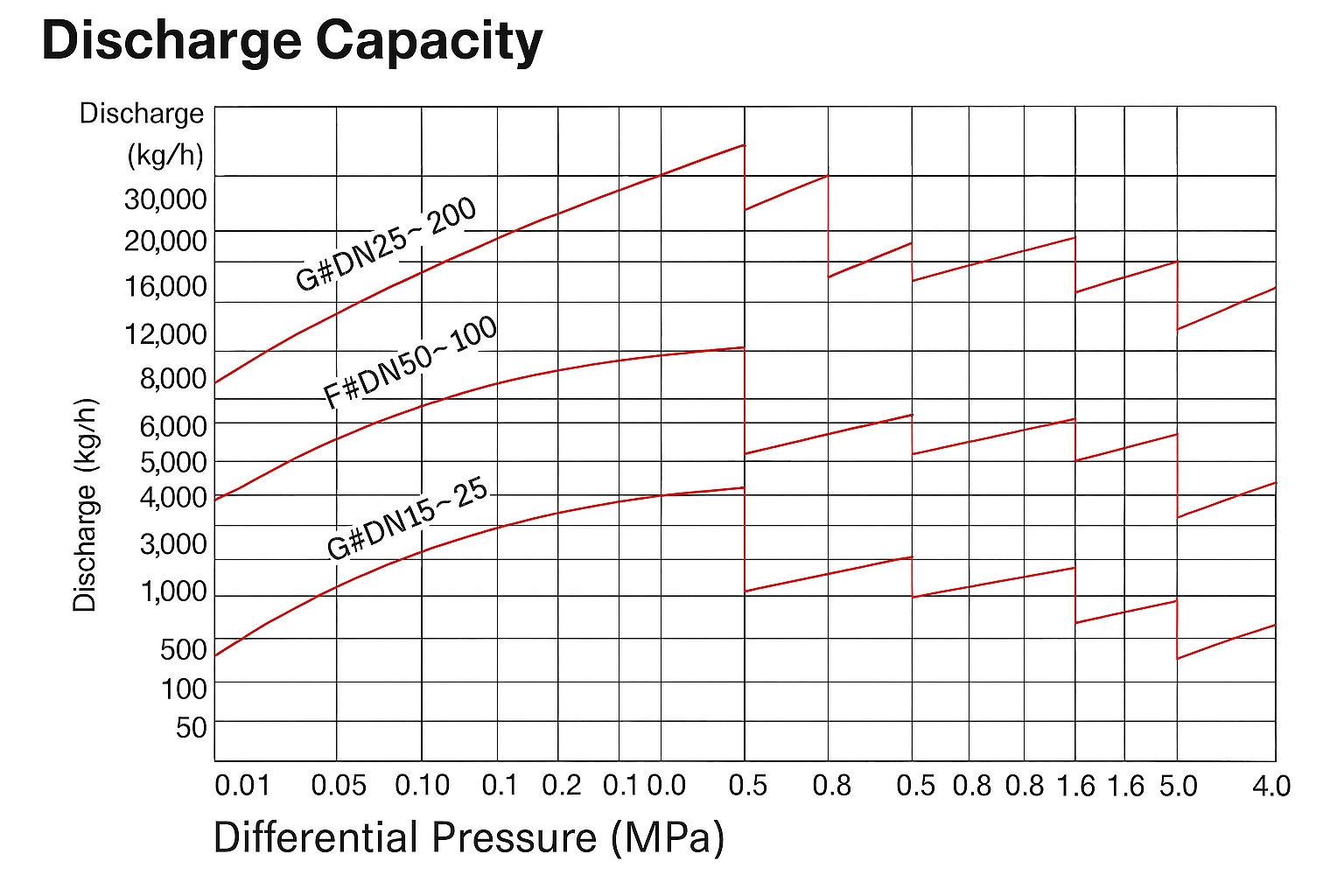

The product demonstrates superior air discharge capacity through its built-in thermostatic air vent and offers high backpressure resistance, maintaining optimal operation even at backpressure ratios up to 80%. With multiple connection diameter options (DN15 to DN80) and drain capacities reaching over 30,000 kg/h depending on size and pressure differential, the CS41H/CS11H stands out as a versatile and essential component in steam management systems.
Whether you require effective condensate removal or aim to enhance steam efficiency, this float trap is an excellent addition to your plant’s valve lineup. For more information or to consult about selecting the right steam trap or any industrial valve, reach out to the experts at VALVEHU. We’re ready to support your procurement needs directly from China with professional service and technical assistance.
Technical Specifications
Valve Type: Float Steam Trap
Model: CS41H / CS11H
Body Material: Cast Iron or Cast Steel
Pressure Rating: PN16
Temperature Resistance: Up to 200°C (cast iron), 425°C (cast steel)
Connection Size: DN15 to DN80
Discharge Capacity: Up to 30,000 kg/h
Float Type: Stainless steel precision float
Operation: Mechanical, self-actuated
Application Media: Saturated steam, superheated steam, and condensate
Stainless Steel Diameter Table (Unit:mm)
| Material | –B | –D | –F | –G |
|---|---|---|---|---|
| Cast Iron Steam Trap | 68 | 110 | 180 | 200 |
| Cast Steel Steam Trap | 40 | 120 | 190 | 220 |
FAQ
What makes the CS41H/CS11H suitable for high-pressure condensate lines?
Its stainless steel float and internal parts ensure durability and reliable sealing under high-pressure conditions.
Can this steam trap handle superheated steam applications?
Yes, the cast steel version supports temperatures up to 425°C, making it suitable for superheated steam systems.
How does the float mechanism work in this valve?
The internal free float rises and falls with condensate level, opening or closing the valve port to discharge condensate automatically.
What is the maximum backpressure ratio this valve can tolerate?
It is designed to handle backpressure up to 80% of inlet pressure without malfunction.
Is this float trap available in different body materials?
Yes, it is available in both cast iron and cast steel to suit different pressure and temperature conditions.
