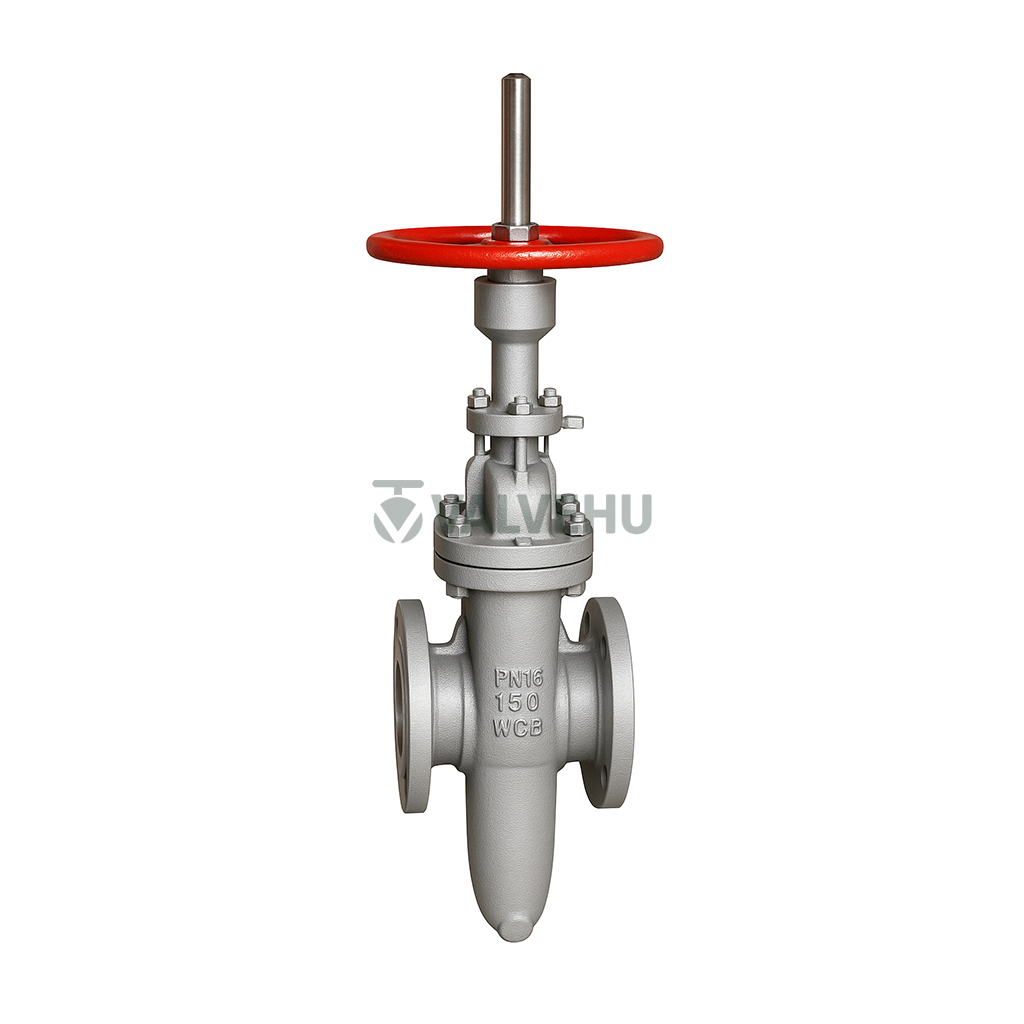

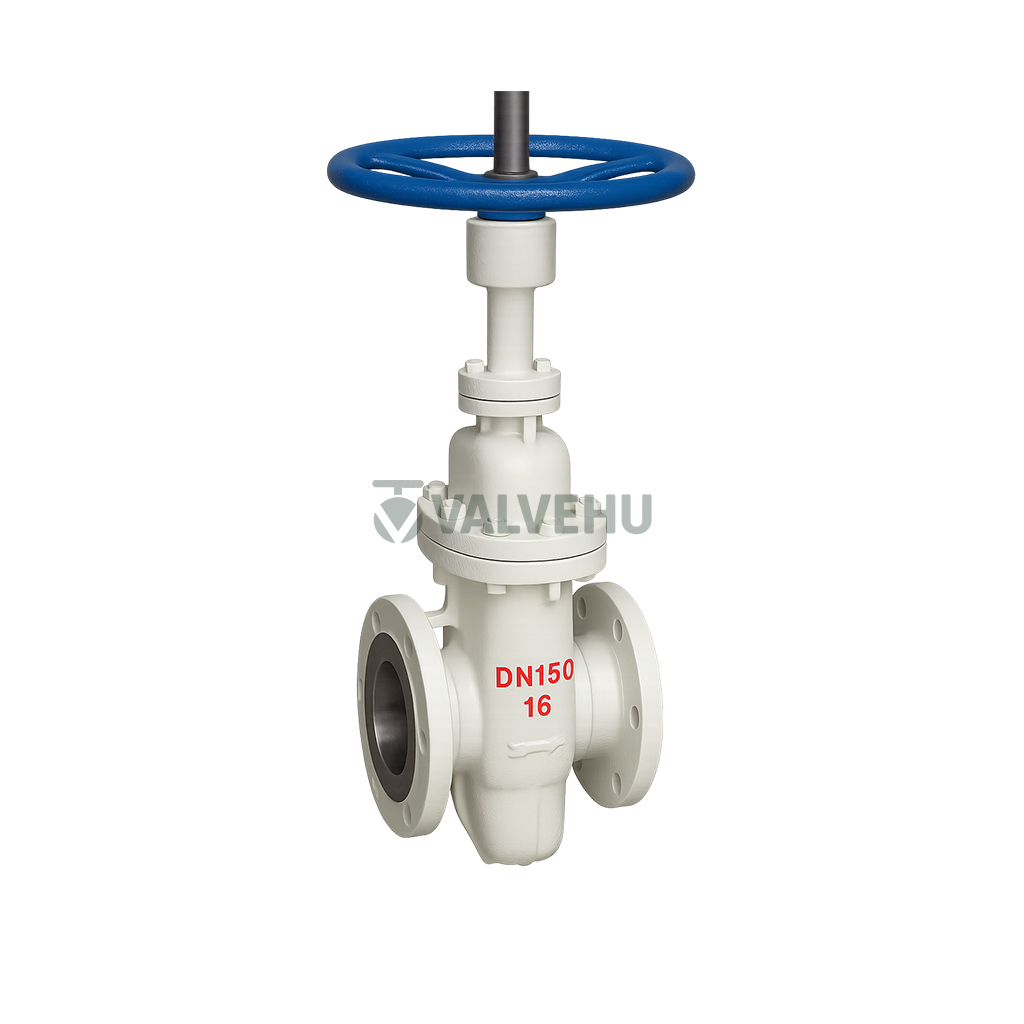

Buy Gate Valve Z43DY PN16–PN25 Cast Steel Flanged Manual Operated

The Z43DY Gate Valve by VALVEHU is a robust industrial solution engineered for reliable shut-off in high-pressure fluid systems. Designed in compliance with GB/T9124.1-2019 and GB12221-2005 standards, this wedge gate valve offers dependable performance across oil, water, steam, and natural gas applications. Available in pressure classes PN16 and PN25, it accommodates nominal diameters ranging from DN40 to DN1000, making it suitable for various pipeline sizes and system demands.

This flanged end gate valve is constructed from high-quality cast steel, providing excellent mechanical strength and thermal durability. It features a rising stem mechanism and is manually operated via a heavy-duty handwheel, which ensures visible position indication and precise control over flow shut-off. The valve seat is designed to provide tight sealing with minimal leakage under both high and low-pressure conditions.

Its guided wedge design (for the DF model) enhances seat alignment, reduces torque requirements, and minimizes wear on sealing surfaces. It also ensures long-lasting reliability even in demanding thermal cycling environments. With an operating temperature range from -29°C to 121°C, this valve is suitable for diverse industrial processes.

Whether you’re managing a water supply system, refining operation, power generation facility, or chemical processing line, this gate valve offers the strength and dependability you require.

For assistance selecting the correct gate valve model, or to discuss customized specifications, contact the technical team at VALVEHU. We’re based in China and ready to support your industrial valve sourcing needs with prompt service and competitive pricing.

Technical Specifications

Valve Type: Gate Valve, wedge type with rising stem
Pressure Rating: PN16 and PN25
Body Material: Cast Steel
Connection Type: Flanged End
Operation Method: Manual, Handwheel Operated
Applicable Media: Water, Steam, Oil, Natural Gas
Temperature Range: -29°C to 121°C
Standards Compliance: GB/T9124.1-2019, GB12221-2005
Available Sizes: DN40 to DN1000
Design Options: With or without flow guide (DF/non-DF)

Valve Performance Parameters

Nominal Pressure (MPa)	1.6	2.5
Shell Test Pressure (MPa)	2.4	3.75
Sealing Test Pressure (MPa)	1.76	2.75
Applicable Media	Water, Oil Products, Natural Gas
Operating Temperature Range	−29°C to +121°C

Main Connection Dimensions

Nominal Pressure PN (bar)	Nominal Diameter DN (mm)	L	D	D1	D2	b	f	Bolt Holes (Z-Φd)	H	H1	E	W (Manual)	W (Electric)
16	40	165	150	110	84	18	2	4–18	416	415	108	305	200
16	50	178	165	125	99	20	2	4–18	441	455	134	305	200
16	65	190	185	145	118	22	2	4–18	470	545	138	305	250
16	80	203	200	160	132	24	2	8–18	532	645	164	305	250
16	100	229	220	180	156	24	2	8–18	682	740	214	305	300
16	125	254	250	210	184	28	2	8–18	812	980	288	305	300
16	150	267	285	240	211	28	2	8–22	980	1288	305	305	320
16	200	292	340	295	266	24	2	12–22	1025	1210	365	305	320
16	250	330	405	355	319	26	2	12–26	1220	1470	457	305	350
16	300	356	460	410	370	28	2	12–26	1446	1805	526	305	350
16	350	381	520	470	429	30	2	16–30	1679	1950	614	458	400
16	400	406	580	525	480	32	2	16–30	1777	2197	665	458	400
16	450	432	640	585	548	34	2	20–30	1872	2458	748	458	450
16	500	457	715	650	609	34	2	20–33	2132	3652	817	458	500
16	600	508	840	770	720	36	2	20–36	2545	3201	920	458	BA–1
16	700	610	910	840	793	38	2	24–36	2845	3542	1326	500	BA–1
16	800	660	1025	950	901	38	2	24–39	3230	4121	1864	500	BA–2
16	900	711	1125	1050	1001	40	2	29–39	3670	4650	2031	600	BA–3
25	40	165	150	110	84	18	2	4–18	416	415	108	305	200
25	50	178	165	125	99	20	2	4–18	441	455	134	305	200
25	65	190	185	145	118	22	2	8–18	470	545	138	305	250
25	80	203	200	160	132	24	2	8–18	532	645	164	305	250
25	100	229	235	190	156	24	2	8–22	682	740	214	305	300
25	125	254	270	220	184	28	2	8–26	715	864	249	305	300
25	150	267	300	250	211	28	2	8–26	812	980	288	305	300
25	200	292	360	310	274	30	2	12–26	1025	1210	365	305	320
25	250	330	425	370	330	32	2	12–30	1220	1470	457	305	350
25	300	356	485	430	389	34	2	16–33	1446	1805	526	305	350
25	350	381	555	490	448	38	2	16–33	1679	1950	614	458	400
25	400	406	620	550	503	40	2	16–36	1777	2197	665	458	400
25	450	432	670	600	548	42	2	20–36	1872	2458	748	458	450
25	500	457	730	660	609	44	2	20–36	2132	2652	817	458	500
25	600	508	845	770	720	46	2	20–42	2545	3201	920	458	BA–1
25	700	610	960	875	820	46	2	24–42	2845	3542	1326	500	BA–1
25	800	660	1085	990	928	50	2	24–48	3230	4121	1864	500	BA–2
25	900	711	1185	1090	1028	54	2	28–48	3670	4650	2031	500	BA–3
