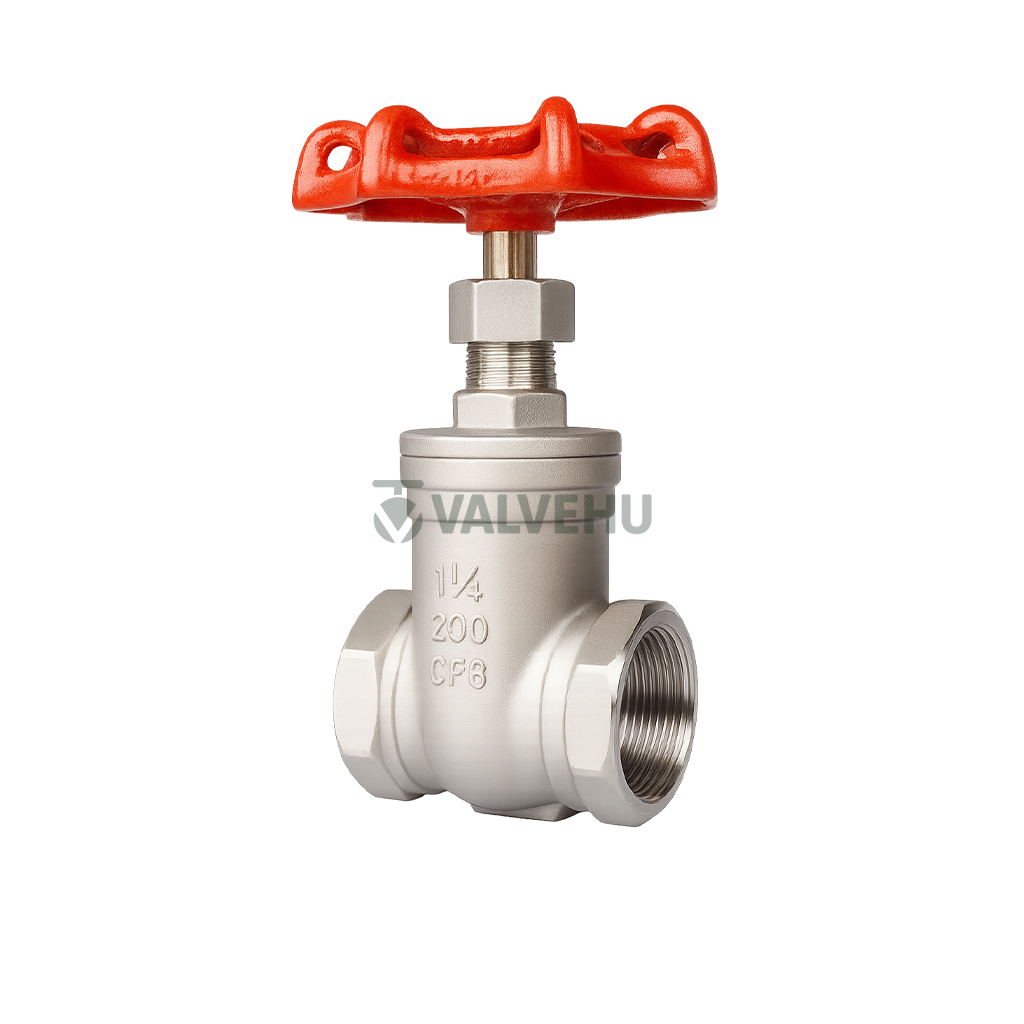

Buy Stainless Steel Gate Valve Z15W – PN2.5 – Threaded Ends – Manual Operated
The Stainless Steel Gate Valve Z15W by VALVEHU is engineered for industrial-grade fluid control across a wide range of applications. This threaded gate valve is manufactured from high-quality stainless steel and built to handle working pressures up to PN2.5 MPa. It is a reliable solution for water, oil, gas (WOG), and various mildly corrosive media.
Featuring a threaded connection type (G, NPT, BSPT, BSP) compliant with DIN259 and DIN2999 standards, this valve ensures easy installation and tight sealing performance. The Z15W design provides full bore flow and minimal pressure loss, making it ideal for systems that require unobstructed fluid passage. Its manual handwheel operation gives users precise on/off control in pipelines.
With a working temperature range of –20°C to +232°C (and up to 350°C in specific conditions), this valve is perfectly suited for high-temperature environments. The compact structure and robust handwheel enhance usability in confined industrial setups, while its dimensional consistency across sizes from 1/2″ to 2″ ensures compatibility with standard piping systems.
VALVEHU’s Z15W threaded gate valve is a preferred choice in HVAC systems, chemical plants, water supply, and general-purpose industrial piping where corrosion resistance, durability, and easy maintenance are essential. Its precision-machined components and long service life reduce operational costs and minimize downtime.
If you’re looking for a dependable threaded gate valve or other industrial valves tailored to your project, our team at VALVEHU in China is ready to support your sourcing and selection needs with technical expertise and competitive supply solutions.
Technical Specifications
- Valve Type: Threaded Gate Valve
- Model: Z15W
- Pressure Rating: PN2.5 MPa
- Body Material: Stainless Steel
- Thread Standards: G, NPT, BSPT, BSP (DIN259/2999)
- Media: Water, Oil, Gas, mild corrosives
- Temperature Range: –20°C to +232°C (max 350°C)
- Connection Size: 1/2″ to 2″
- Operation Method: Manual Handwheel
- Flow Characteristic: Full Bore, Low Pressure Drop
Main Connection Dimensions and Weight (Unit: mm)
| Dimension | 1/2″ | 3/4″ | 1″ | 11/4″ | 11/2″ | 2″ |
|---|---|---|---|---|---|---|
| A | 15 | 20 | 25 | 32 | 38 | 50 |
| H | 90 | 97 | 108 | 120 | 146 | 163 |
| L | 55 | 60 | 65 | 75 | 85 | 95 |
| D | 70 | 70 | 80 | 80 | 90 | 100 |
FAQ
What is the pressure rating of the Z15W stainless steel gate valve?
The valve is rated for PN2.5 MPa working pressure, suitable for most industrial WOG applications.
Can this valve handle high-temperature fluids?
Yes, it operates reliably from –20°C up to 232°C, and up to 350°C in specific applications.
Which thread types are supported by this valve?
This valve supports G, NPT, BSPT, and BSP thread standards according to DIN259 and DIN2999.
Is the Z15W valve suitable for corrosive media?
It is made of stainless steel and supports mildly corrosive liquids, making it ideal for chemical and water systems.
What sizes are available for the Z15W gate valve?
This valve is available in sizes from 1/2 inch up to 2 inches, covering a wide range of piping systems.
