Buy Motorized Rotary Valve YHF Low Pressure Carbon Steel Flange Type Feeder

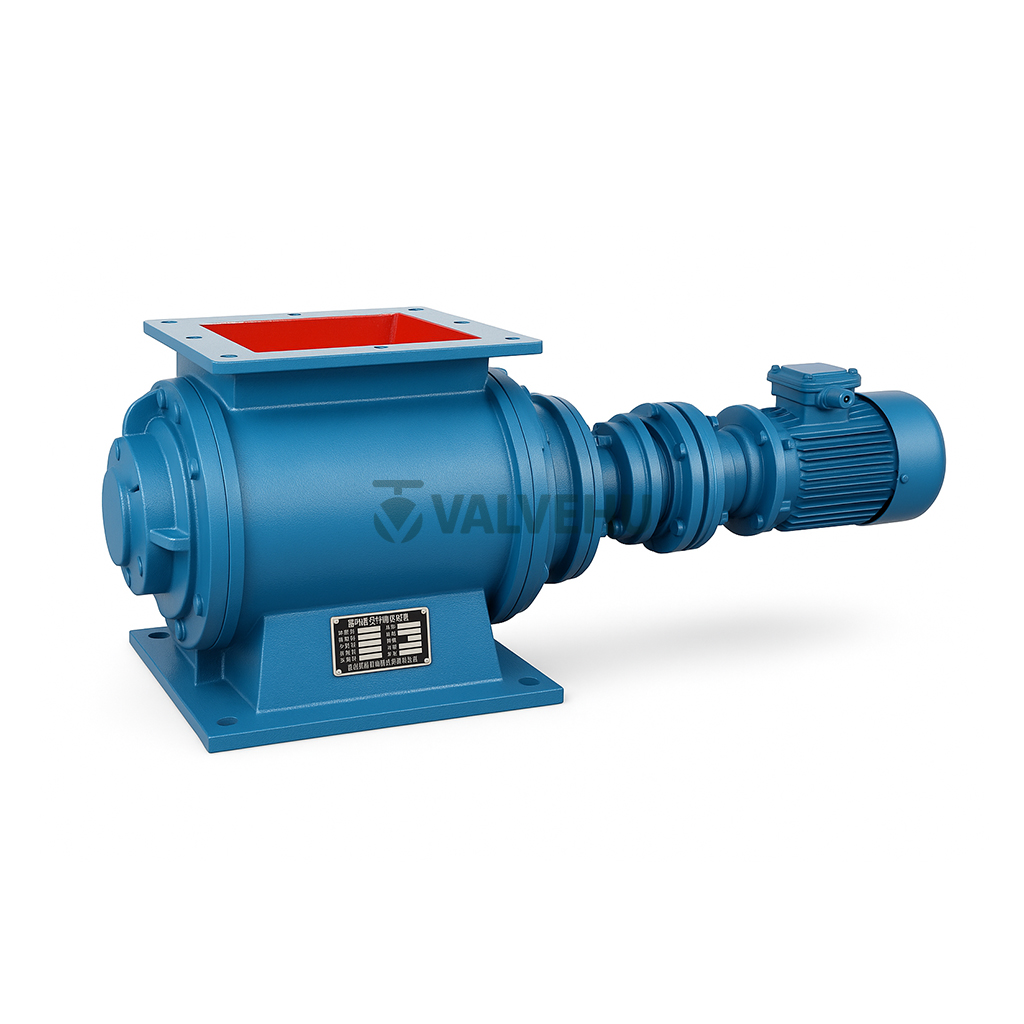

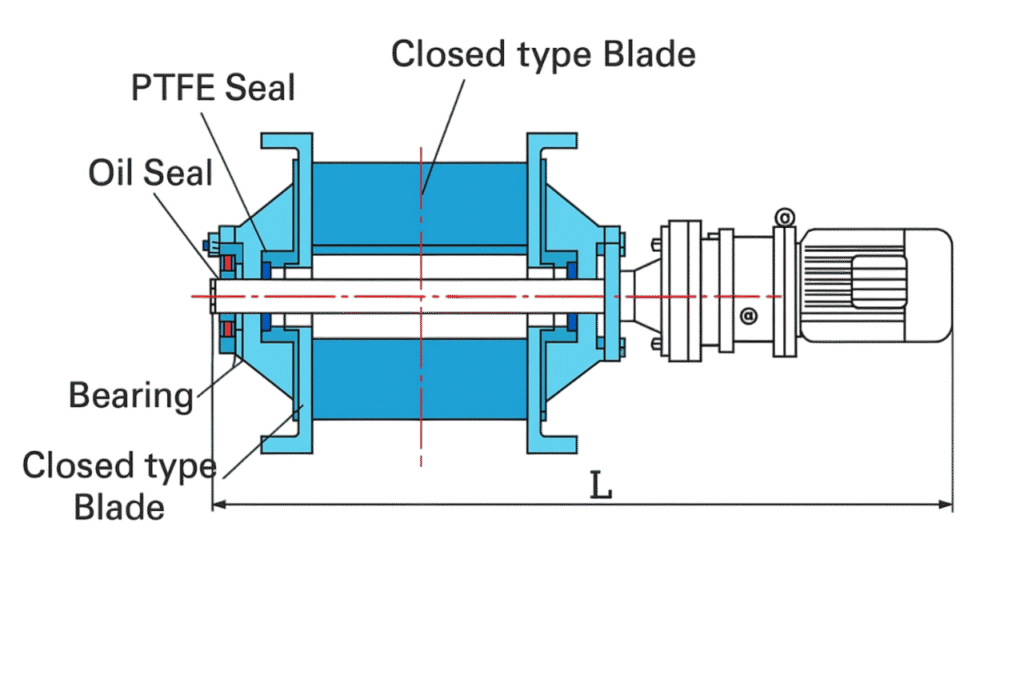

The YHF Rotary Airlock Valve from VALVEHU is a precision engineered rotary feeder designed to meter and isolate dry bulk materials such as fly ash, cement powder and granules in dust collection, pneumatic conveying and silo discharge systems. Its rugged cast-iron housing contains a machined eight-blade rotor that maintains tight clearances for minimal air leakage and smooth throughput. Capacities span 2 L to 260 L per revolution, delivering discharge rates from 1.1 m³ h to 143.8 m³ h at 24 rpm, while shaft speed can be varied between 3 and 35 rpm using the integral helical gearmotor.
Flanged inlet and outlet ports simplify installation. Face dimensions range from 190 mm to 860 mm and overall lengths reach 1500 mm on the largest unit, allowing easy integration into both compact and high-capacity layouts. Internal contact surfaces tolerate product temperatures up to 80 °C and the external casing withstands 300 °C, making the unit suitable for service beneath bag filters, cyclones or rotary kilns.
Dynamic rotor balancing, grease-lubricated bearings and a fully enclosed drive train yield low vibration and reduced noise. Drive power options run from 0.55 kW on the 2 L model to 7.5 kW on the 260 L size, with hardened gears for long service life. Optional variable-frequency drives, wear-resistant coatings or stainless steel internals can be specified for abrasive or sanitary duties.
Widely applied in environmental protection equipment, metallurgy, power generation, food processing and chemical plants, this rotary feeder ensures stable feed accuracy and positive airlock, cutting conveying losses and downtime. For sizing support or to match a YHF feeder to your process, contact the technical team at VALVEHU in China; our engineers are ready to configure the ideal bulk material flow solution for your plant.
Technical Specifications
- Valve Type: Rotary airlock feeder
- Model Range: 2 L to 260 L per revolution

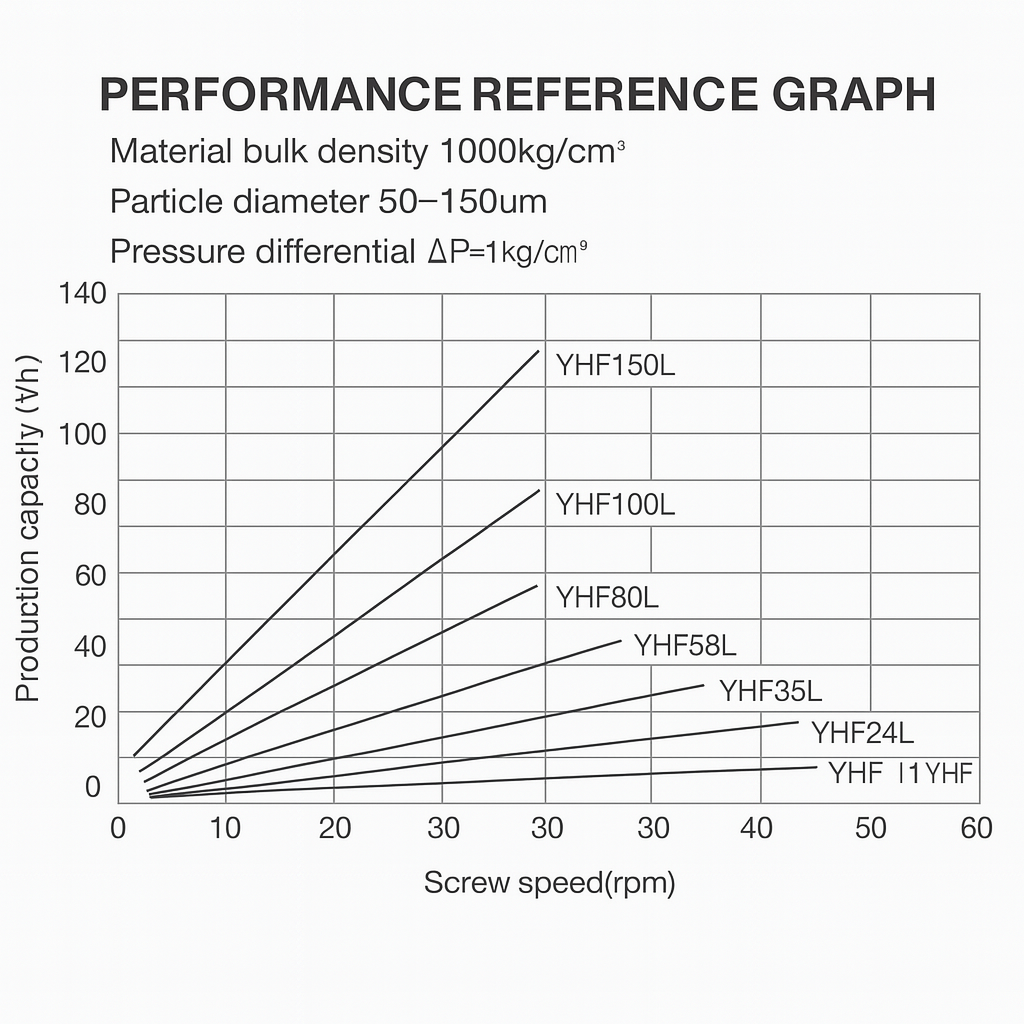

- Capacity: 1.1–143.8 m³ h at 24 rpm
- Speed Range: 3 to 35 rpm adjustable
- Temperature: Internal ≤ 80 °C, external ≤ 300 °C
- Body Material: Heavy-duty cast iron
- Rotor: Precision eight-blade design
- Drive Power: 0.55 kW – 7.5 kW geared motor
- Connection: Flanged inlet and outlet

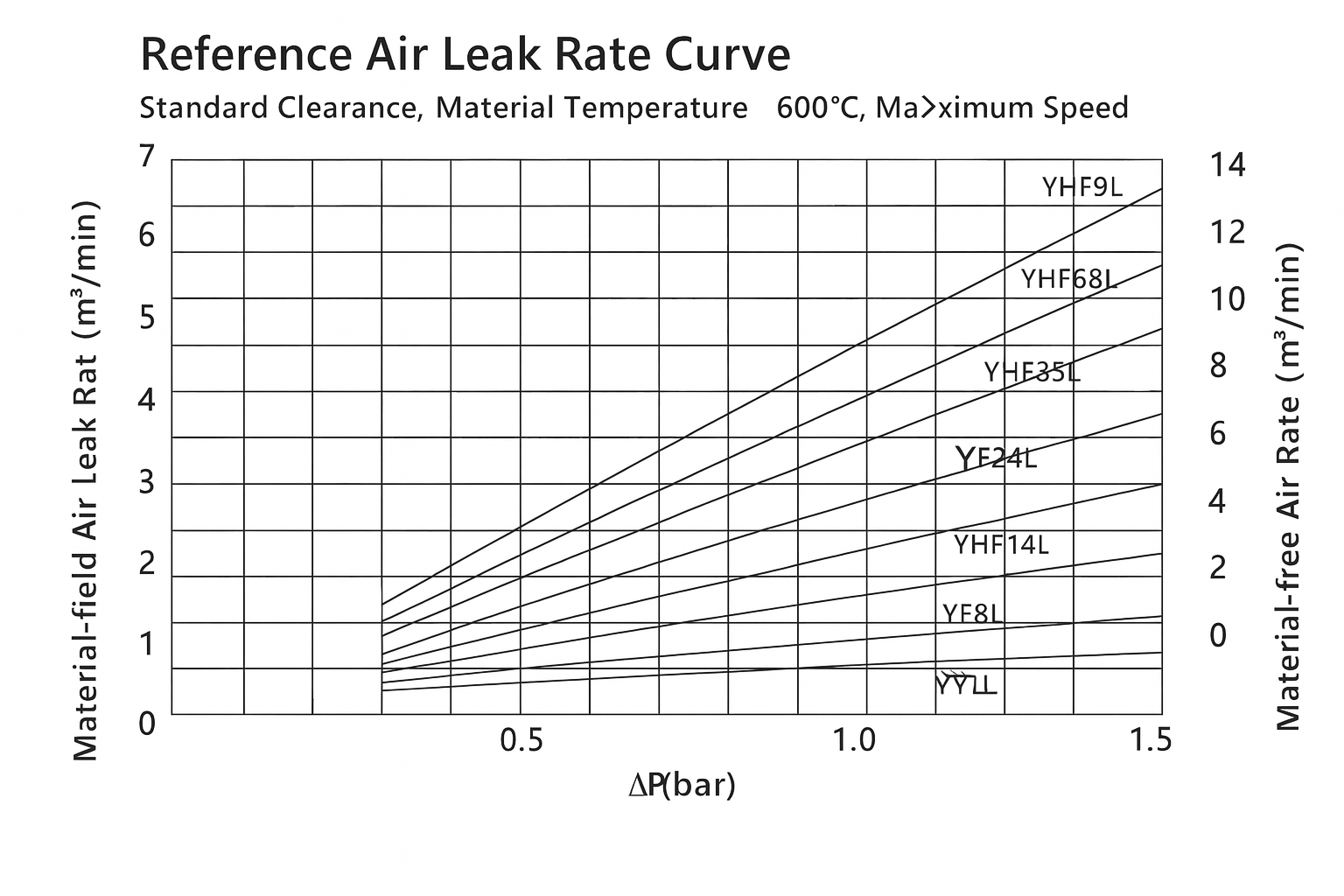

- Seal Clearance: Tight gap minimises air leakage
FAQ
What materials can the YHF rotary feeder handle?
Dry powders, granules and small chips including fly ash, cement, lime, grains and plastic resin.
What is the operating speed range of this valve?
Rotor speed is adjustable from 3 rpm to 35 rpm through the integrated gearmotor.
How much product can it discharge?
Depending on size it delivers 1.1 to 143.8 m³ h at 24 rpm, allowing flexible process control.
Can it operate at elevated temperatures?
Yes, internal parts handle up to 80 °C material temperature while the external casing withstands 300 °C.
Is variable frequency control available?
A VFD can be supplied on request, enabling precise speed adjustment for changing process requirements.
