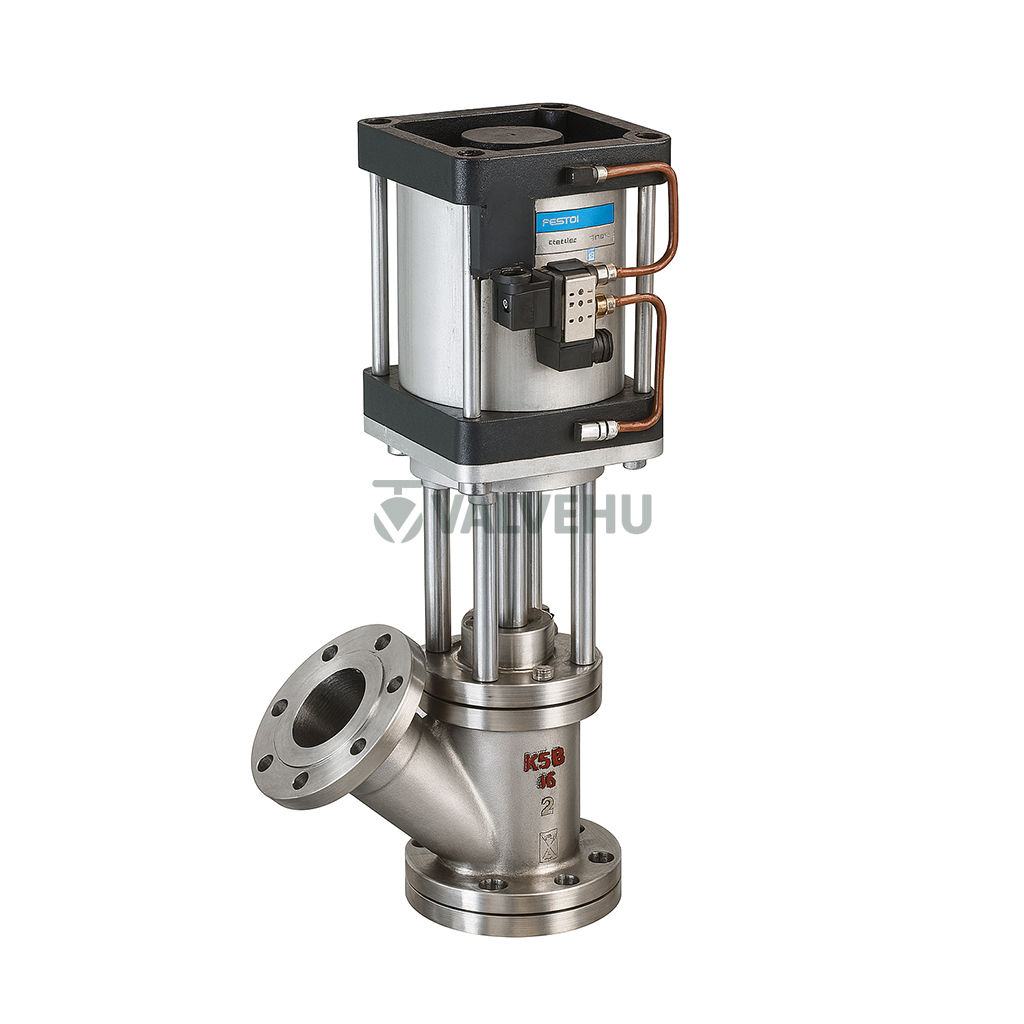

Buy Top Entry Ceramic Plug Valve HG5-89 | Dual Pressure Class SS Body Pneumatic Operation
This top-mounted discharge valve by VALVEHU is engineered for high-performance material drainage and bottom-discharge applications in demanding industrial environments. Designed under the HG5-89 standard, this valve integrates a ceramic-lined structure with a top-entry actuator system, delivering both mechanical resilience and corrosion resistance. It is widely deployed in chemical, pharmaceutical, food processing, and metallurgical systems where contamination control and thermal stability are paramount.
The internal body is lined or coated to withstand aggressive media and elevated temperatures. With sizes ranging from DN25 to DN200 and connection standards matching ISO-compliant flanges, this valve accommodates a wide range of reactor volumes and discharge pressures. It features precision-machined components for leak-proof shutoff and low-torque operation. The pneumatic actuator ensures fast, automated operation, suitable for continuous or batch processing environments.
Additionally, its Y-type angled design minimizes dead space and sediment accumulation, making it ideal for powder, slurry, or viscous media handling. The ceramic-plug sealing mechanism is especially favored in applications with high abrasion or thermal cycling, maintaining long service life and reducing downtime.
Whether you are specifying valves for a new installation or replacing existing units, this industrial-grade solution guarantees superior control and discharge accuracy. For tailored configurations and expert support, reach out to VALVEHU’s valve specialists in China. We’re here to guide you in selecting the optimal valve solution for your operation.
Technical Specifications
Valve Type: Top-mounted ceramic-lined discharge valve
Standard: Manufactured according to HG5-89
Nominal Sizes: Available in DN25 to DN200
Body Design: Y-type angled body for efficient drainage
Actuation: Pneumatic top-entry actuator with precision control
Lining Material: Internal ceramic or anti-corrosive metal lining
Operating Temperature: Supports high-temperature discharges (up to 900°C coating capability)
Applications: Used in chemical, pharmaceutical, food, and metallurgy sectors
End Connection: ISO-standard flanged ends
Sealing Mechanism: Wear-resistant plug-type shutoff system
Main Connection Dimensions (Unit: mm)

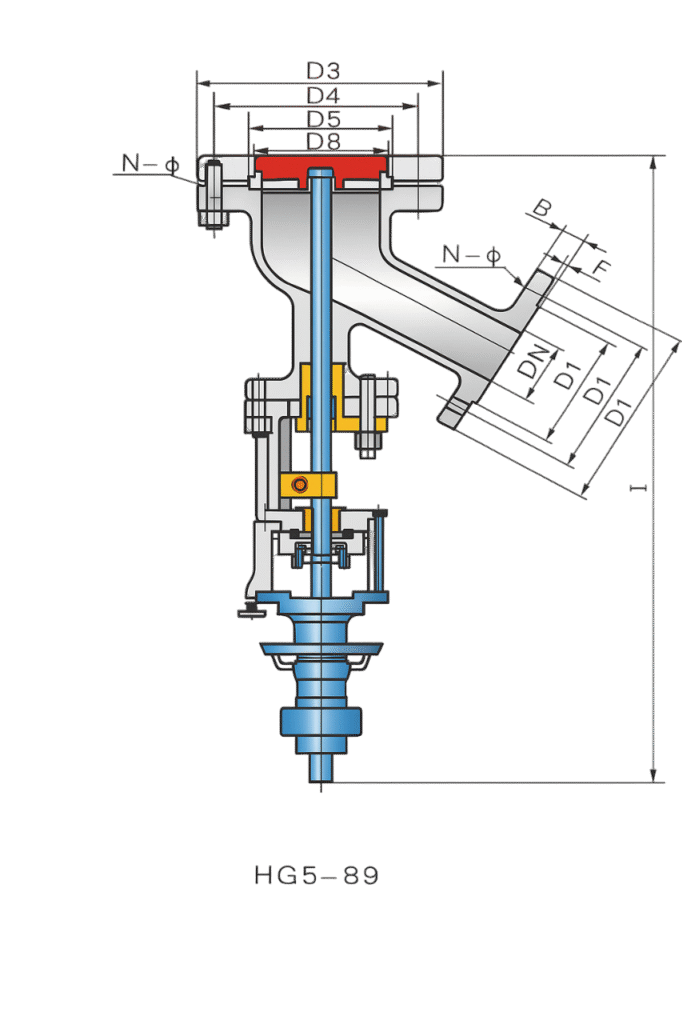

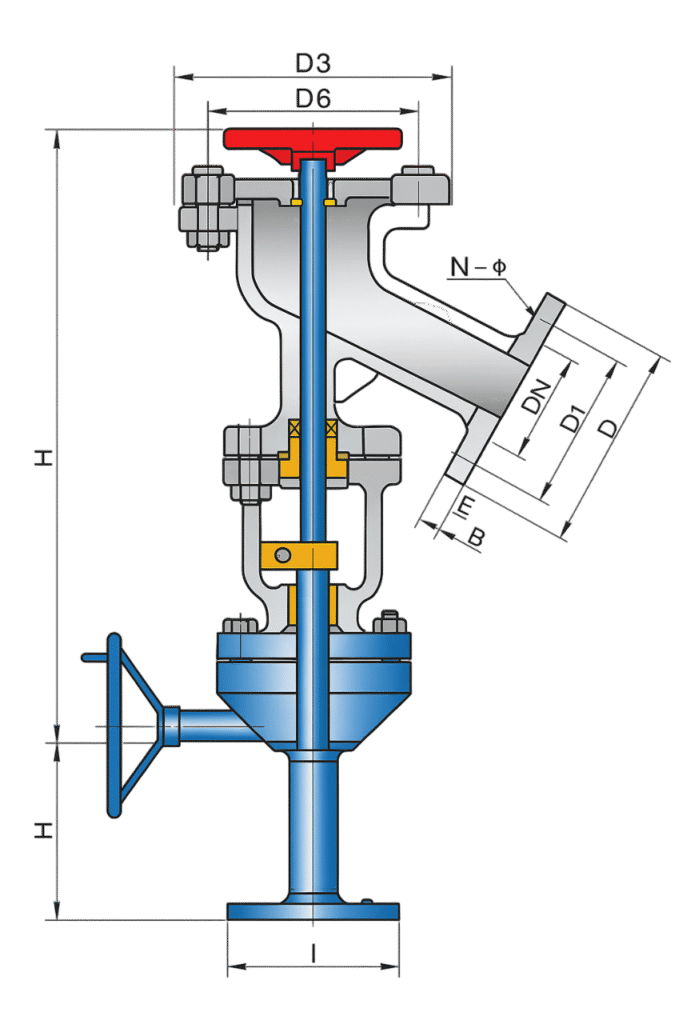

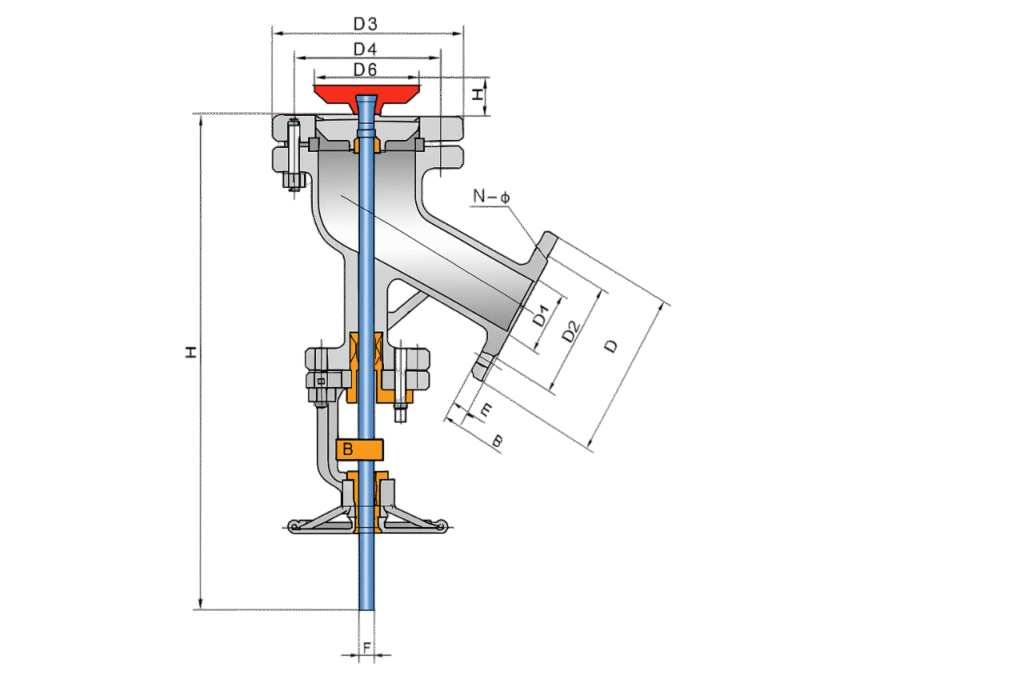

| Nominal Diameter (DN) | d | D | D1 | D2 | D3 | D4 | D5 | D6 |
|---|---|---|---|---|---|---|---|---|
| 25 | 25 | 115 | 85 | 65 | 115 | 85 | 60 | 40 |
| 32 | 32 | 135 | 100 | 78 | 135 | 100 | 65 | 45 |
| 40 | 40 | 145 | 110 | 85 | 145 | 110 | 80 | 60 |
| 50 | 50 | 160 | 125 | 100 | 160 | 125 | 85 | 70 |
| 65 | 65 | 180 | 145 | 120 | 180 | 145 | 125 | 85 |
| 80 | 80 | 195 | 160 | 135 | 195 | 160 | 135 | 95 |
| 100 | 100 | 215 | 180 | 155 | 215 | 180 | 160 | 130 |
| 125 | 125 | 245 | 210 | 185 | 245 | 210 | 180 | 140 |
| 150 | 150 | 280 | 240 | 210 | 280 | 240 | 185 | 165 |
| 200 | 200 | 335 | 295 | 265 | 335 | 295 | 255 | 230 |
FAQ
What makes this valve suitable for corrosive discharge applications?
Its ceramic lining and anti-corrosive body materials withstand aggressive chemicals and high temperatures.
Can this valve be used for powder or slurry discharge?
Yes, the Y-type angled design and plug sealing are optimized for solids, powders, slurries, and viscous media.
Is the actuator system compatible with industrial automation?
Absolutely. The pneumatic actuator integrates seamlessly with automated process control systems.
Does the valve support multiple pressure classes?
Yes, this valve accommodates PN10 and PN16 pressure classes, making it versatile for different line conditions.
What flange sizes are supported in this series?
Flange sizes range from DN25 to DN200, with ISO-standard dimensions for easy installation in existing systems.
