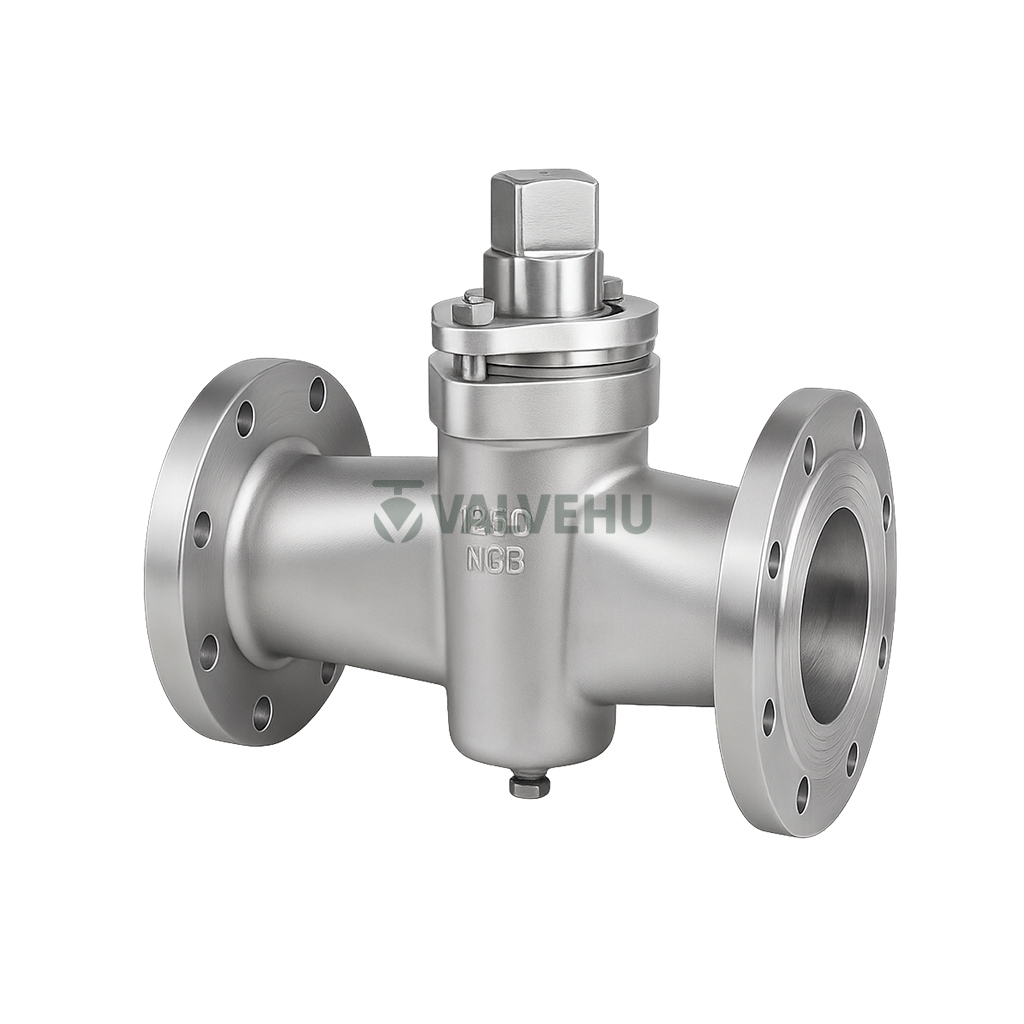

Buy Plug Valve X43/W PN0.6/1.0 Cast Iron Flanged Manual
The VALVEHU Plug Valve X43/W is a high-performance solution engineered for industrial flow control applications involving water, steam, and oils. Manufactured with precision and reliability in mind, this cast iron plug valve is designed for use in low-pressure environments, offering pressure ratings of PN0.6 MPa and PN1.0 MPa. It features a manually operated flanged end connection, making it ideal for pipeline systems requiring secure shutoff with minimal maintenance.
Built from durable cast iron, this plug valve ensures excellent resistance to corrosion and mechanical stress, suitable for temperatures below 100°C. Its robust body design and compact structure provide a stable, leak-tight seal that enhances operational efficiency. With a pressure-sealed body and a simple quarter-turn operation, it is a preferred choice for engineers and maintenance teams looking for efficient shutoff and throttling control.
This model is widely used in water treatment, oil distribution, and general industrial processing lines. The valve undergoes rigorous testing including hydrostatic and seal pressure testing at 0.9 MPa and 0.66 MPa respectively for PN0.6 (and up to 1.5 MPa and 1.1 MPa for PN1.0), ensuring reliable performance under real-world conditions. Its operating torque is low, typically between 0.5 to 0.7 MPa, making manual operation smooth and user-friendly.
Whether you need to install new lines or replace aging components, the X43/W plug valve from VALVEHU delivers quality and dependable service at an accessible cost. For detailed consultation, custom solutions, or support selecting the right valve type for your system, contact our expert team at VALVEHU China today. We’re here to help streamline your sourcing and ensure the right valve for every job.
Technical Specifications
- Model: X43/W
- Pressure Ratings: PN0.6 MPa and PN1.0 MPa
- Body Material: Cast Iron
- Connection Type: Flanged
- Operation: Manual (Hand-operated)
- Media Compatibility: Water, Steam, Oil
- Operating Temperature: ≤100°C
- Hydrostatic Test Pressure: 0.9 MPa (PN0.6), 1.5 MPa (PN1.0)
- Seal Test Pressure: 0.66 MPa (PN0.6), 1.1 MPa (PN1.0)
- Operating Torque: 0.5 to 0.7 MPa
Main Performance Specifications (Plug Valve X43/W)
| Specification | Value (PN 0.6 MPa) | Value (PN 1.0 MPa) |
|---|---|---|
| Nominal Pressure (MPa) | 0.6 | 1.0 |
| Shell Test Pressure (MPa) | 0.9 | 1.5 |
| Seal Test Pressure (MPa) | 0.66 | 1.1 |
| Operating Torque (MPa) | 0.5 – 0.7 | 0.5 – 0.7 |
| Applicable Media | Water, Steam, Oil | Water, Steam, Oil |
| Applicable Temperature | ≤100°C | ≤100°C |
Main Dimensions and Connection Sizes (Unit: mm)
| PN | DN | L | H | D | D1 | D2 | B | Z–ΦD | Handle Height (H) |
|---|---|---|---|---|---|---|---|---|---|
| PN 0.6 | 32 | 115 | 150 | 120 | 90 | 70 | 16 | 4–14 | 49 |
| 40 | 130 | 180 | 130 | 100 | 80 | 16 | 4–14 | 60 | |
| 50 | 145 | 210 | 140 | 110 | 90 | 16 | 4–14 | 70 | |
| 65 | 160 | 254 | 160 | 130 | 110 | 16 | 4–14 | 90 | |
| 80 | 200 | 307 | 185 | 150 | 125 | 18 | 4–18 | 107 | |
| 100 | 230 | 365 | 205 | 170 | 145 | 18 | 4–18 | 130 | |
| 150 | 320 | 550 | 250 | 225 | 200 | 20 | 8–18 | 220 | |
| PN 0.6 / 1.0 | 20 | 90 | 124 | 105 | 75 | 55 | 16 | 4–14 | 34 |
| 25 | 110 | 133 | 115 | 85 | 65 | 16 | 4–14 | 38 | |
| 32 | 130 | 152 | 135 | 100 | 78 | 18 | 4–18 | 45 | |
| 40 | 150 | 182 | 145 | 110 | 85 | 18 | 4–18 | 55 | |
| 50 | 170 | 236 | 160 | 125 | 100 | 20 | 4–18 | 74 | |
| 65 | 220 | 264 | 180 | 145 | 120 | 20 | 4–18 | 82 | |
| 80 | 250 | 297 | 195 | 160 | 135 | 22 | 4–18 | 95 | |
| 100 | 300 | 425 | 215 | 180 | 155 | 22 | 4–18 | 135 | |
| 125 | 350 | 482 | 245 | 210 | 185 | 24 | 8–18 | 154 | |
| 150 | 400 | 512 | 285 | 240 | 210 | 24 | 8–23 | 172 |
