Buy GJ41X GJ641X Plug Valve PN0.6/1.0 Cast Iron Flange End Handwheel/Pneumatic Control
The GJ41X/GJ641X Jacketed Plug Valve by VALVEHU is a premium industrial solution designed for applications involving media that require insulation or heat retention, especially in chemical processing industries. Engineered with precision, this valve supports pressure ratings of PN 0.6/1.0 MPa, making it suitable for both light and medium-duty flow control tasks. Its flanged connection ensures easy integration in pipeline systems, and the jacketed body offers superior thermal management for viscous or temperature-sensitive fluids.

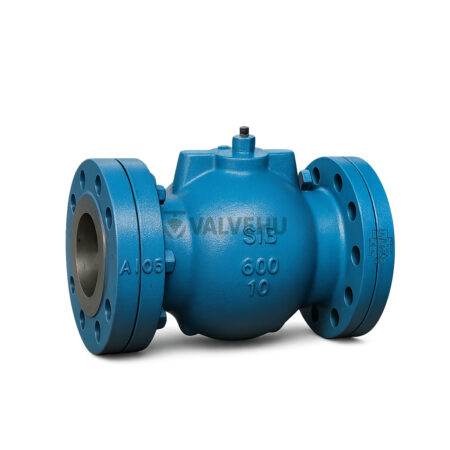

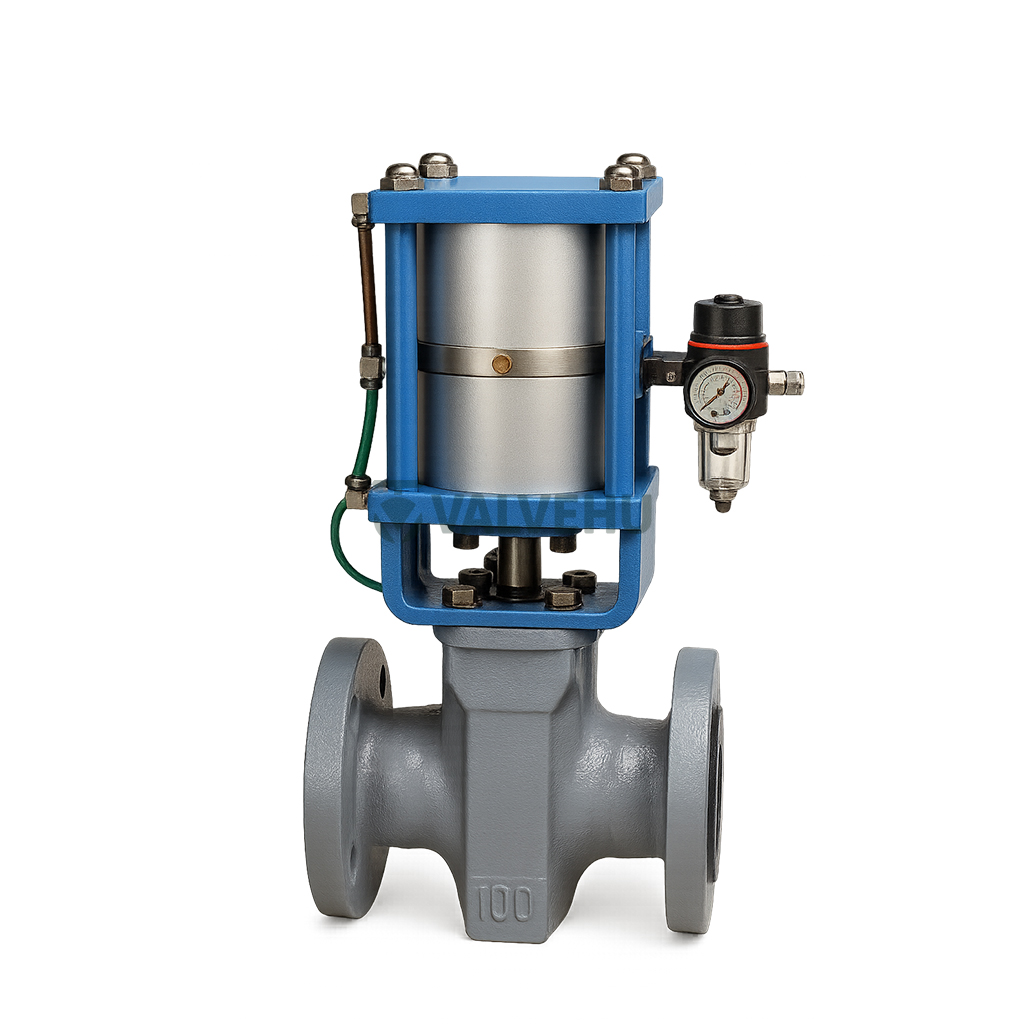

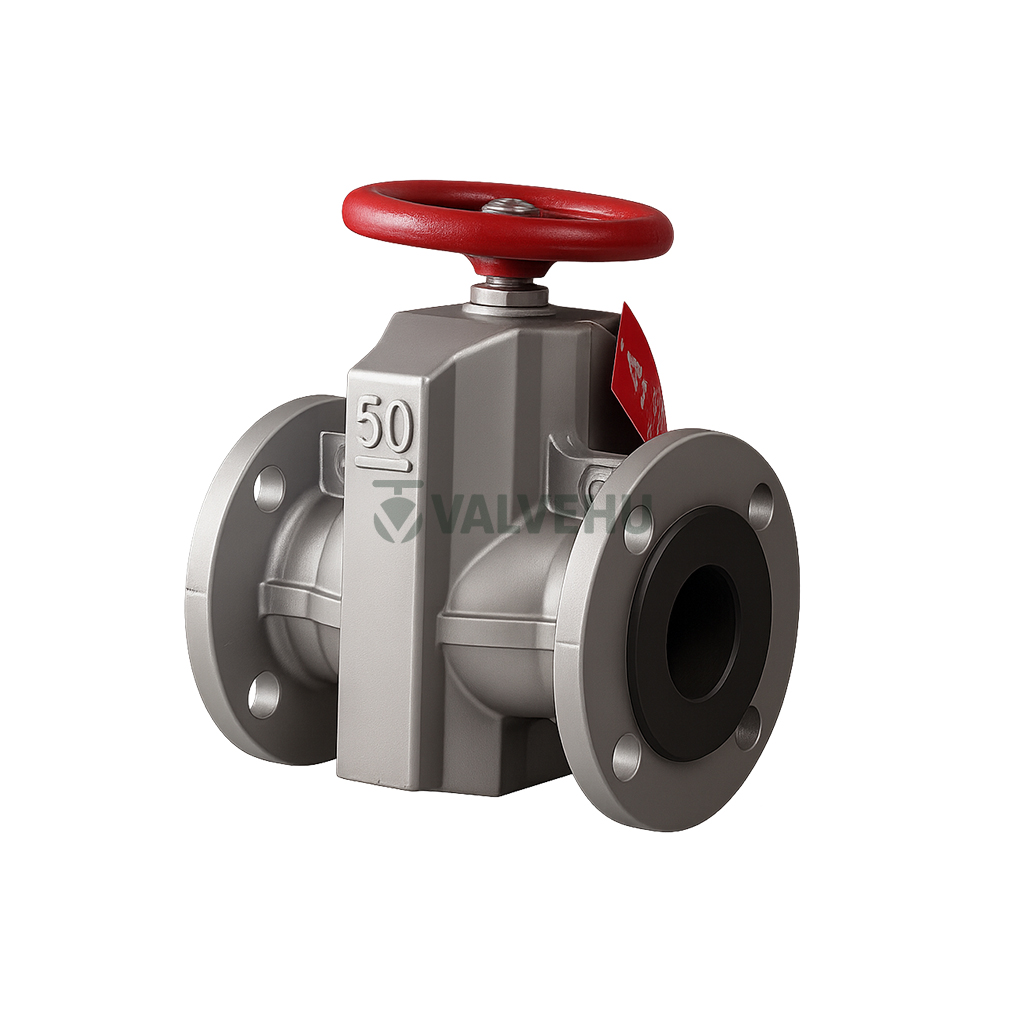

This plug valve is available in two operational modes: the manual handwheel-operated GJ41X and the pneumatically actuated GJ641X, both crafted to deliver tight shut-off and reliable service in corrosive and non-corrosive environments. The body material is offered in cast iron and cast steel, providing mechanical strength and corrosion resistance under normal temperature conditions. The internal sealing elements use rubber-lined sleeves and corrosion-resistant metals, contributing to longevity and leak-tight performance.
The design follows industry-standard dimensions for DN sizes ranging from 25 to 500 mm, ensuring compatibility with common piping configurations. The valve’s compact structure and jacketed construction make it ideal for fluid media that must be maintained above ambient temperatures.
Whether you’re dealing with heat-sensitive materials or require reliable isolation in processing lines, this jacketed plug valve stands out for its durability, thermal efficiency, and operational flexibility.
To find the best plug valve solution for your project or application, consult with our specialists at VALVEHU in China. Our experienced engineers are ready to assist you in choosing the optimal valve for your industrial needs.
Technical Specifications
Valve Type: Jacketed Plug Valve
Models Available: GJ41X (manual), GJ641X (pneumatic)
Pressure Rating: PN 0.6/1.0 MPa
Body Material: Cast Iron / Cast Steel
Sealing Material: Rubber-lined sleeves
Connection Type: Flanged
Size Range: DN 25–500 mm
Working Temperature: Ambient / Normal temperature
Testing Pressure: 0.66/1.1 MPa (tightness), 0.9/1.5 MPa (strength)
Applications: Heat-retention fluid handling in chemical pipelines
Main Performance Specifications
| Nominal Diameter(DN mm) | Nominal Pressure(PN MPa) | Working Pressure(MPa) | Test Pressure (MPa)Sealing | Test Pressure (MPa)Strength | Test Temperature(°C) |
|---|---|---|---|---|---|
| 25–150 | 0.6 / 1.0 | 0.6 / 1.0 | 0.66 / 1.1 | 0.9 / 1.5 | Normal Temperature |
| 200–500 | 0.6 / 1.0 | 0.4 / 1.0 | 0.44 / 1.1 | 0.6 / 1.5 | Normal Temperature |
Material Specifications of Main Valve Components
| Component | Material | Component | Material |
|---|---|---|---|
| Valve Body | Aluminum Alloy or Cast Iron | Pull Rod | Carbon Steel |
| Sleeve | Natural Rubber | Compression Rod | Aluminum Alloy |
| Valve Stem | Brass | Handwheel | Cast Iron |
| Stem Support | Carbon Steel | Bracket | Cast Iron |
Main Connection Dimensions at PN 0.6/1.0 MPa
| DN | L | D | D1 | D2 | b | Z–Φd | H1 | D0 |
|---|---|---|---|---|---|---|---|---|
| 40 | 190 | 130 / 145 | 100 / 110 | 80 / 85 | 14 / 16 | 4–Φ14 / Φ18 | 186 | 140 |
| 50 | 210 | 140 / 160 | 110 / 125 | 90 / 100 | 14 / 20 | 4–Φ14 / Φ18 | 205 | 160 |
| 65 | 270 | 160 / 180 | 130 / 145 | 110 / 120 | 14 / 20 | 4–Φ14 / Φ18 | 238 | 200 |
| 80 | 300 | 185 / 195 | 150 / 160 | 125 / 135 | 16 / 20 | 4 / 8–Φ18 / Φ23 | 241 | 200 |
| 100 | 350 | 205 / 215 | 170 / 180 | 145 / 155 | 16 / 22 | 8–Φ18 / Φ23 | 302 | 240 |
| 125 | 430 | 235 / 245 | 200 / 210 | 175 / 185 | 18 / 22 | 8–Φ18 / Φ23 | 360 | 280 |
| 150 | 500 | 260 / 280 | 225 / 240 | 200 / 210 | 18 / 24 | 8–Φ23 / Φ23 | 405 | 320 |
| 200 | 650 | 315 / 335 | 280 / 295 | 255 / 265 | 20 / 24 | 8–Φ23 / Φ23 | 545 | 560 |
| 250 | 800 | 370 / 390 | 335 / 350 | 310 / 320 | 22 / 26 | 12–Φ23 / Φ23 | 632 | 650 |
| 300 | 950 | 435 / 440 | 395 / 400 | 362 / 368 | 22 / 28 | 12–Φ23 | 747 | 620 |
| 350 | 1050 | 485 / 500 | 445 / 460 | 412 / 428 | 22 / 30 | 12–Φ23 / Φ23 | 835 | 800 |
| 400 | 1100 | 535 / 565 | 495 / 515 | 462 / 482 | 22 / 32 | 16–Φ23 / Φ25 | 945 | 900 |
| 450 | 1120 | 590 / 615 | 550 / 565 | 518 / 532 | 22 / 40 | 16–Φ23 / 20–Φ25 | 985 | 900 |
| 500 | 1235 | 640 / 670 | 600 / 620 | 568 / 585 | 24 / 44 | 16–Φ23 / Φ25 | 1050 | 1000 |
FAQ
What is the main advantage of a jacketed plug valve?
It maintains media temperature by allowing steam or hot oil circulation around the valve body.
Can the GJ641X model be automated in process control systems?
Yes, the GJ641X includes a pneumatic actuator suitable for automated control.
What sizes are available for this valve model?
It is manufactured in DN sizes ranging from 25 mm to 500 mm.
Is this valve suitable for corrosive fluids?
Yes, depending on the selected material, it is suitable for many corrosive and non-corrosive media.
What industries typically use this type of valve?
Primarily chemical, petrochemical, pharmaceutical, and other process industries requiring fluid temperature control.
