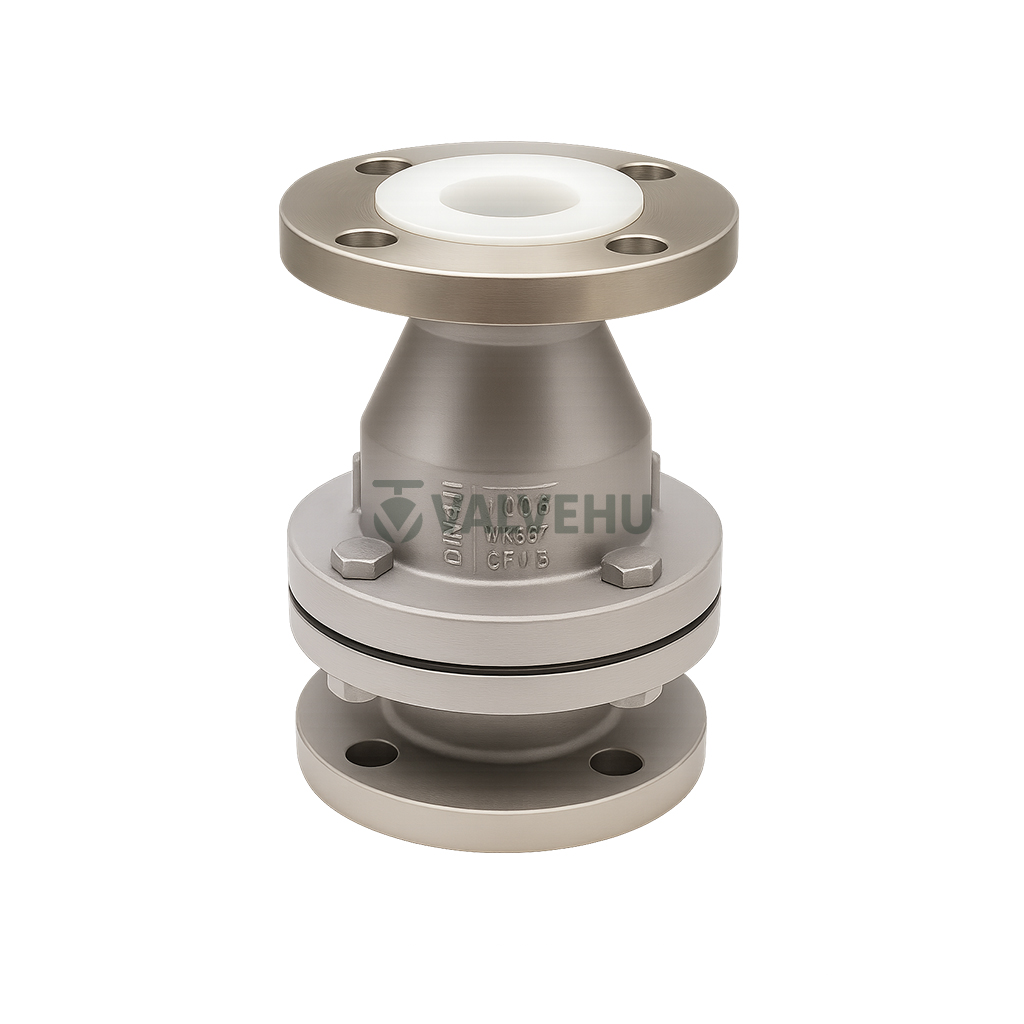

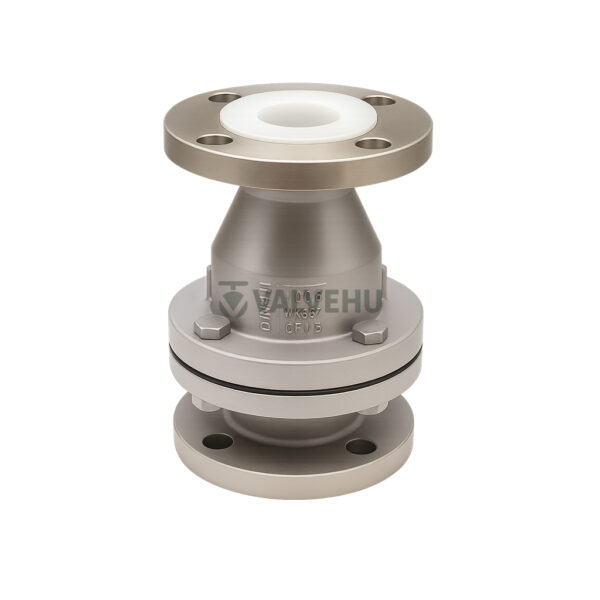

Buy Swing & Lift Check Valve H44F-H41F Class PN1.0/1.6 Carbon Steel Flanged Manual Operation
The H44F/H41F Check Valve series by VALVEHU is a reliable solution engineered for fluid systems where backflow prevention is critical. These industrial-grade valves are available in both swing type (H44F) and lift type (H41F) configurations, supporting pressures up to PN1.0 and PN1.6MPa. Designed in compliance with GB12236, GB12221, JB/T924.1, and GB/T13927, this valve line is ideal for pipelines carrying corrosive or non-corrosive media.
Constructed from a wide range of body materials including WCB, stainless steel (CF8/CF8M), and corrosion-resistant liners like FEP, PFA, F46, the H44F/H41F check valves offer outstanding chemical resistance and pressure integrity. The flanged connection design ensures secure and easy installation across standard pipeline systems, while the compact structure and full-bore design support minimal pressure loss and stable flow behavior.
This series is particularly suited for chemical plants, water treatment, petroleum, and HVAC applications, and is compatible with both vertical and horizontal mounting. Whether you choose the swing type for low-pressure, gravity-driven systems or the lift type for high-speed fluid dynamics, the VALVEHU range offers precision control with dependable performance.
If you are looking for robust check valves tailored to your system’s pressure class, media type, and installation needs, our specialists at VALVEHU in China are ready to support your project with expert guidance and fast sourcing.
Technical Specifications
- Valve Type: Swing Type (H44F) & Lift Type (H41F)
- Pressure Rating: PN1.0MPa and PN1.6MPa
- Body Material: WCB, CF8, CF8M, F46, PFA-lined
- Connection Type: Flanged (standard dimensions)
- Flow Direction: One-way (check valve function)
- Design Standards: GB12236, GB12221
- Testing Standard: GB/T 13927
- Liner Options: FEP, F46, F3 for enhanced corrosion protection
- Installation: Horizontal or vertical pipelines
- Available Sizes: DN15 to DN600 (½” to 24”)

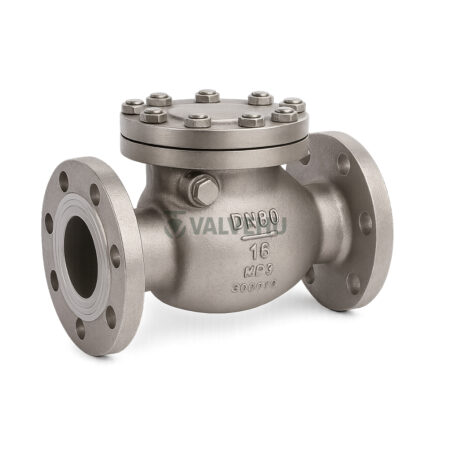

H44F Swing Type Check Valve – Main Connection Dimensions (PN1.0MPa) (Unit: mm)
| DN (mm) | NPS (inch) | L | D | D1 | D2 | f | b | Z–Φd | B | H |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 1/2 | 130 | 95 | 65 | 45 | 2 | 14 | 4–Φ14 | 105 | 55 |
| 20 | 3/4 | 150 | 105 | 75 | 55 | 2 | 16 | 4–Φ14 | 115 | 58 |
| 25 | 1 | 160 | 115 | 85 | 65 | 2 | 16 | 4–Φ14 | 128 | 60 |
| 32 | 1 1/4 | 180 | 135 | 100 | 78 | 2 | 18 | 4–Φ18 | 145 | 75 |
| 40 | 1 1/2 | 230 | 145 | 110 | 85 | 3 | 18 | 4–Φ18 | 160 | 82 |
| 50 | 2 | 250 | 160 | 125 | 100 | 3 | 20 | 4–Φ18 | 178 | 95 |
| 65 | 2 1/2 | 290 | 180 | 145 | 120 | 3 | 20 | 4–Φ18 | 205 | 105 |
| 80 | 3 | 310 | 195 | 160 | 135 | 3 | 22 | 4/8–Φ18 | 230 | 120 |
| 100 | 4 | 350 | 215 | 180 | 155 | 3 | 22 | 8–Φ18 | 255 | 135 |
| 125 | 5 | 400 | 245 | 210 | 185 | 3 | 24 | 8–Φ23 | 305 | 158 |
| 150 | 6 | 480 | 280 | 240 | 210 | 3 | 26 | 8–Φ23 | 360 | 180 |
| 200 | 8 | 495 | 335 | 295 | 265 | 3 | 30 | 8–Φ23 | 415 | 215 |
| 250 | 10 | 622 | 390 | 350 | 320 | 4 | 32 | 12–Φ23 | 490 | 240 |
| 300 | 12 | 698 | 440 | 400 | 368 | 4 | 32 | 12–Φ23 | 540 | 265 |
| 350 | 14 | 787 | 500 | 460 | 428 | 4 | 32 | 16–Φ23 | 585 | 300 |
| 400 | 16 | 914 | 565 | 515 | 482 | 4 | 32 | 16–Φ25 | 635 | 360 |

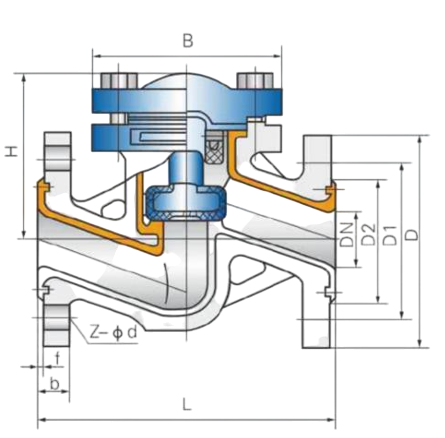

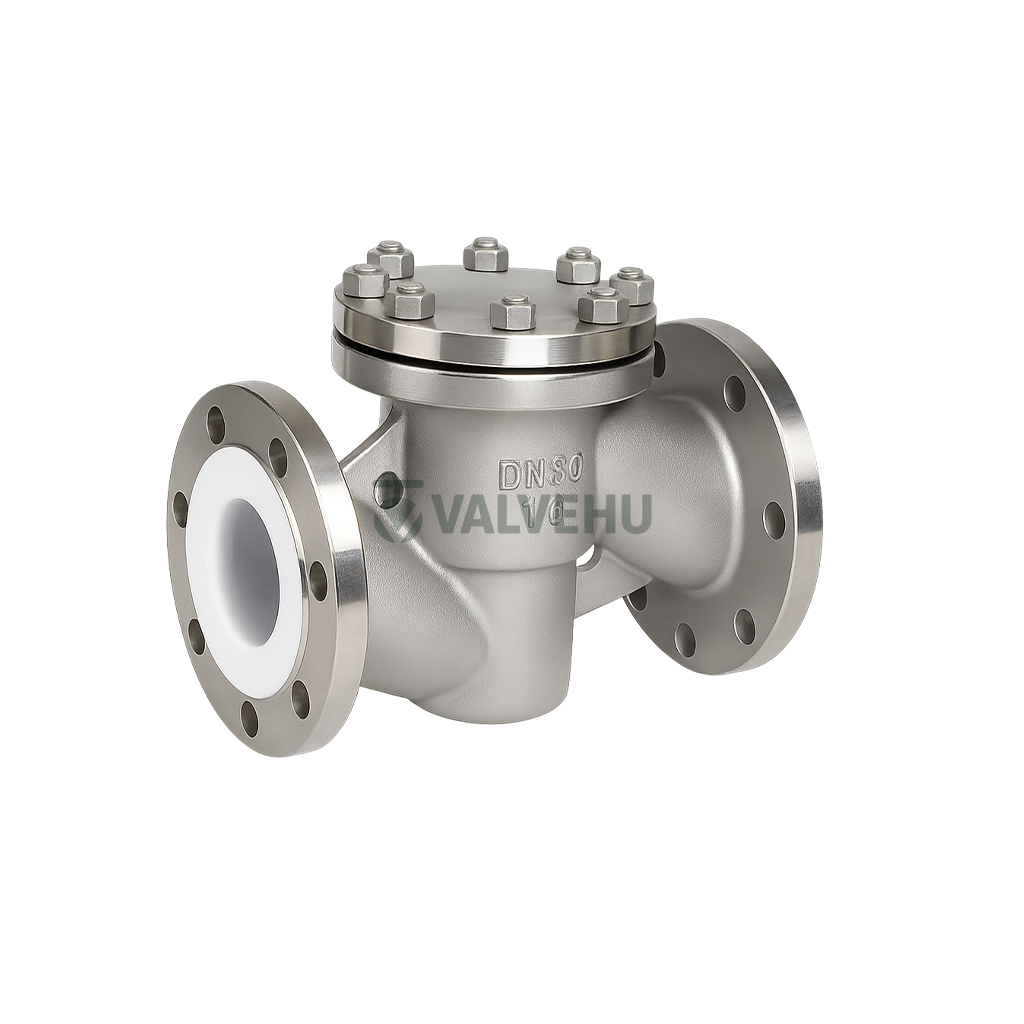

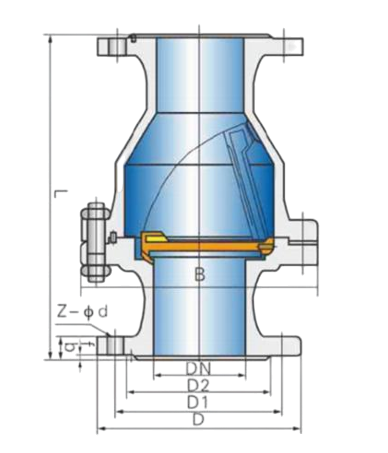

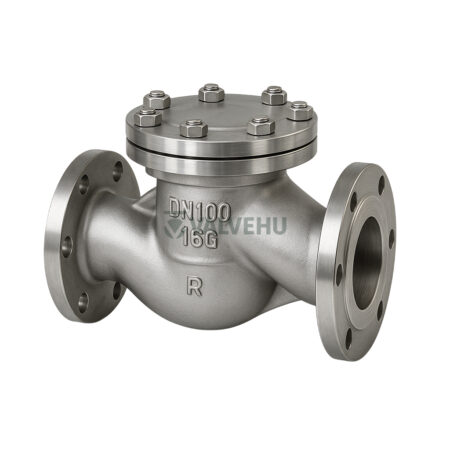

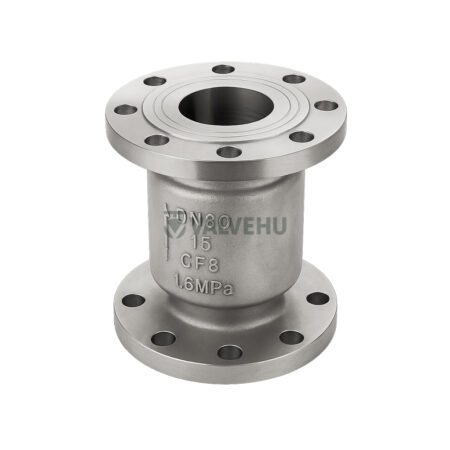

H41F Flanged Lift Check Valve (Straight Lift Type) – Main Connection Dimensions (PN1.0/PN1.6MPa) (Unit: mm)
| DN (mm) | L | D | D1 | D2 | b | f | Z–Φd | B |
|---|---|---|---|---|---|---|---|---|
| 50 | 203 | 160/165 | 125 | 99 | 16/20 | 3 | 4–Φ18 | 185 |
| 65 | 216 | 180/185 | 145 | 118 | 18/20 | 3 | 4–Φ18 | 210 |
| 80 | 241 | 195/200 | 160 | 132 | 18/20 | 3 | 4–Φ18 / 8–Φ18 | 235 |
| 100 | 292 | 215/220 | 180 | 155 | 20/22 | 3 | 8–Φ18 | 260 |
| 125 | 330 | 245/250 | 210 | 184 | 22 | 3 | 8–Φ18 | 310 |
| 150 | 356 | 280/285 | 240 | 210 | 22/24 | 3 | 8–Φ23 | 350 |
| 200 | 495 | 335/340 | 295 | 265 | 22/24 | 3 | 8–Φ23 / 12–Φ23 | 420 |
| 250 | 622 | 390/405 | 350/355 | 319 | 24/26 | 3 | 12–Φ23 / 12–Φ26 | 505 |
| 300 | 698 | 440/460 | 400/410 | 368 | 26/28 | 4 | 12–Φ23 / 12–Φ26 | 560 |
| 350 | 787 | 500/520 | 460/470 | 428 | 26/30 | 4 | 16–Φ25 / 16–Φ26 | 605 |
| 400 | 914 | 565/580 | 515/525 | 480 | 26/32 | 4 | 16–Φ25 / 16–Φ30 | 650 |
| 450 | 978 | 615 | 565 | 532 | 26 | 4 | 20–Φ25 | 680 |
| 500 | 978 | 670 | 620 | 585 | 28 | 4 | 20–Φ25 | 740 |
FAQ
What is the difference between H44F and H41F check valves?
H44F is a swing type check valve; H41F is a lift type. Swing is used in horizontal pipelines, while lift is suitable for both horizontal and vertical.
Which pressure ratings are supported by these check valves?
This series supports pressure classes PN1.0MPa and PN1.6MPa, covering most industrial and chemical pipeline systems.
What are the compatible media types for these valves?
They are ideal for water, steam, gas, and corrosive fluids when selected with appropriate materials like CF8M or lined with F46.
Can I install this valve vertically?
Yes, both types support vertical installation. Lift type (H41F) is better suited for vertical use with upward flow.
Are these valves compliant with international standards?
Yes, they meet GB12236, GB12221, JB/T924.1, and API/ASME equivalent flange and test standards.
