Buy Ball Valve Q41F-160P High Pressure Stainless Steel Flanged Manual

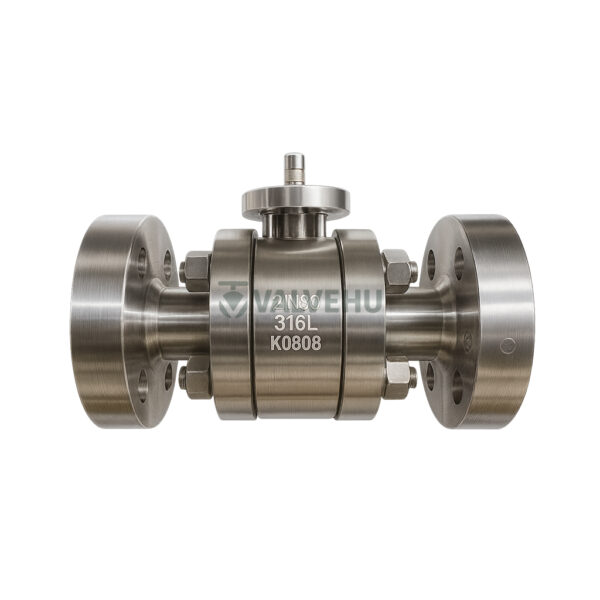

The Q41F-160P High Pressure Ball Valve from the trusted brand VALVEHU is designed for critical industrial applications where durability, reliability, and safe operation under extreme pressure are essential. Engineered with a robust stainless steel body, this flanged-end valve is suitable for nominal pressures up to PN160 and accommodates pipe sizes from DN10 to DN100. It features a full-bore structure, ensuring minimal flow resistance and efficient fluid control across oil, gas, steam, and corrosive media.
This industrial-grade valve incorporates a precisely machined ball and stem system that ensures bubble-tight shutoff and long-term sealing integrity. The body dimensions are carefully engineered for high-load conditions, featuring thick-wall components and reinforced flange interfaces. The design adheres to strict mechanical tolerance standards, resulting in excellent torque performance and minimal maintenance requirements.
The Q41F-160P is ideal for refineries, petrochemical facilities, and power plants where high-pressure control is non-negotiable. The integrated manual gear operation (handwheel actuator) offers intuitive handling even in harsh industrial environments. With operating dimensions like L1, D, D1, H, and L0 clearly defined and optimized for compactness and stability, this valve guarantees ease of installation and field compatibility with international piping systems.
Whether you’re sourcing for new infrastructure or upgrading existing pipelines, the Q41F-160P offers a high-performance, low-risk investment. For further assistance or technical support, we highly recommend contacting the VALVEHU specialists in China. Our team is ready to support you with expert recommendations tailored to your operational requirements.
Technical Specifications
- Valve Type: Ball Valve, Full Bore Design
- Model: Q41F-160P
- Pressure Rating: PN160
- Body Material: Stainless Steel
- End Connection: Flanged
- Operation Type: Manual Handwheel
- Size Range: DN10 to DN100
- Application: Steam, oil, gas, corrosive fluids
- Standards: High mechanical tolerance, tight shutoff
- Dimensions Provided: L, L1, D, D1, H, L0 (in mm)
Main Dimensions and Connection Sizes (Model: Q41F-160) (Unit: mm)
| Model | Nominal Diameter DN (mm) | L | L1 | D | D1 | H | L0 |
|---|---|---|---|---|---|---|---|
| Q41F-160 | 10 | 150 | 60 | 90 | 18 | 58 | 220 |
| Q41F-160 | 15 | 170 | 70 | 100 | 23 | 62 | 220 |
| Q41F-160 | 20 | 190 | 80 | 110 | 29 | 75 | 250 |
| Q41F-160 | 25 | 205 | 95 | 115 | 36 | 80 | 250 |
| Q41F-160 | 32 | 230 | 110 | 150 | 43 | 96 | 300 |
| Q41F-160 | 40 | 260 | 120 | 170 | 49 | 111 | 400 |
| Q41F-160 | 50 | 330 | 140 | 200 | 61 | 128 | 400 |
| Q41F-160 | 65 | 360 | 150 | 225 | 80 | 180 | 500 |
| Q41F-160 | 80 | 380 | 160 | 270 | 105 | 200 | 600 |
| Q41F-160 | 100 | 430 | 188 | 320 | 118 | 245 | 800 |
FAQ
What does Q41F-160P indicate in the valve model?
It defines a high-pressure flanged ball valve series designed for PN160 with manual operation and full bore design.
Is this valve suitable for corrosive or high-temperature fluids?
Yes, the stainless steel body and robust sealing make it ideal for corrosive and high-temperature environments.
What size range does this high-pressure valve cover?
It supports nominal diameters from DN10 up to DN100, offering versatility for various industrial pipelines.
Can the Q41F-160P valve be installed in vertical pipelines?
Yes, it is compatible with both horizontal and vertical pipeline installations due to its balanced structure.
What industries use this valve most commonly?
Main applications include petrochemical plants, oil & gas facilities, power generation, and high-pressure process systems.
