Buy Forged Globe Valve Class800 to 1500 Carbon or SS Steel NPT SW Ends Manual

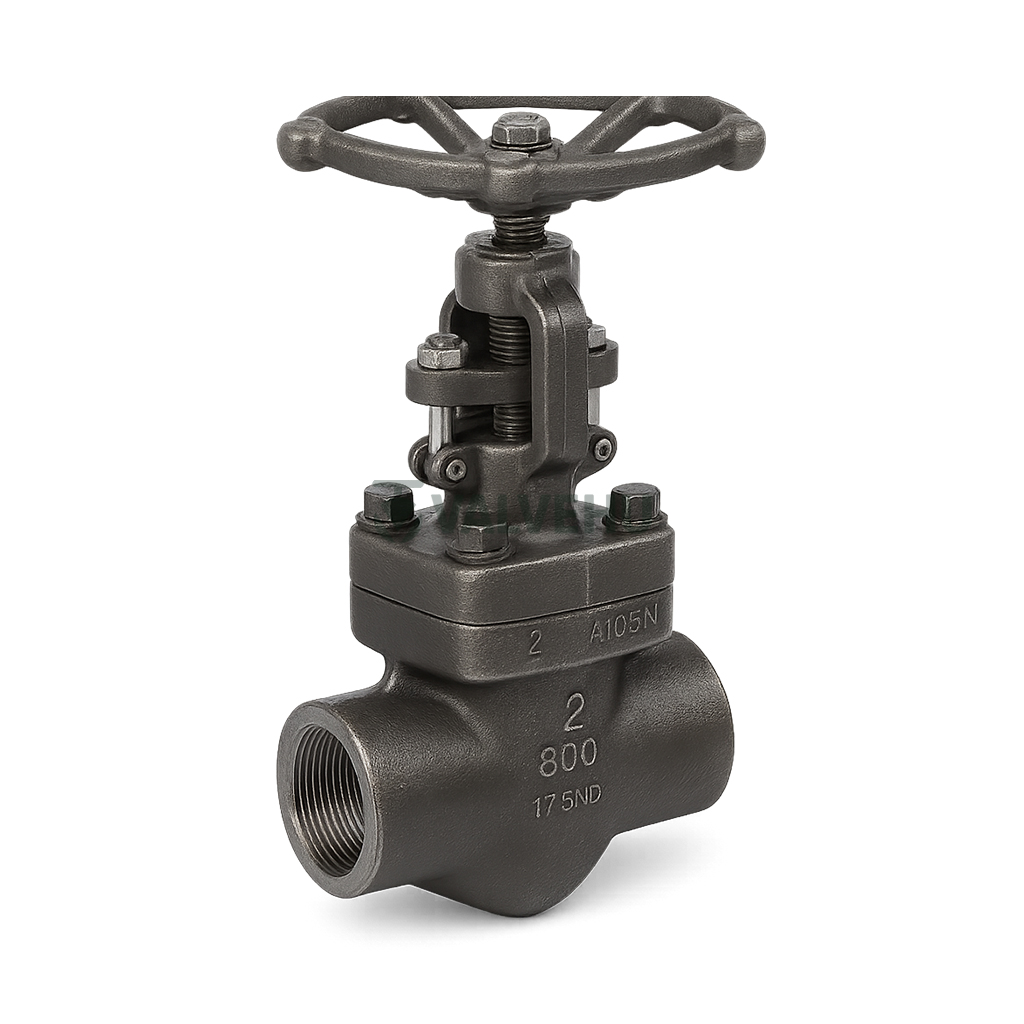

The VALVEHU Forged Steel Globe Valve Class800–1500 SW/NPT/BW Manual Operated is a compact and high-performance solution for critical flow control in high-pressure pipelines. Manufactured to comply with API 602 and tested per API 598, this product ensures tight shutoff and long-term durability in demanding industrial environments.
This forged globe valve from VALVEHU features a rising stem and solid disc design that allows precise flow throttling and low leakage. It is suitable for various media including steam, oil, water, and gas, and is constructed from forged materials like A105, F22, or stainless steel grades such as F304 and F316, depending on customer requirements.
Available in pressure ratings Class 800, 900, and 1500, this valve is optimized for high-pressure service in compact piping systems. Connection types include socket weld (SW), threaded (NPT), and butt weld (BW), all conforming to ASME B16.11 standards for end dimensions. The handwheel operation ensures ease of control, while the integral body and bonnet structure minimizes leakage points.
Designed for applications in power plants, refineries, chemical industries, and steam distribution networks, this forged valve stands out with its durable stem packing, accurate machining, and long operating life under pressure and thermal stress.
If you’re searching for a reliable globe valve that meets international specifications and fits tight spaces without sacrificing performance, this model is an ideal choice. For technical consultation and customized solutions, we recommend contacting the VALVEHU technical team in China. We’re here to help you find the right valve for your exact needs.
Technical Specifications
- Valve Type: Forged Steel Globe Valve
- Pressure Rating: Class 800 / 900 / 1500
- Connection Type: Socket Weld (SW), Threaded (NPT), Butt Weld (BW)
- Operation: Manual with Handwheel
- Body Structure: One-piece forged body and bonnet
- Design Standard: API 602
- Test Standard: API 598
- End Dimension Standard: ASME B16.11
- Stem Type: Rising stem
- Application Media: Steam, oil, gas, water
Main Dimensions & End Connection Sizes for Forged Steel Globe Valve (Unit: mm)
| Pressure Class (Lb) | NPS | DN | L | d | S | H | W | NPT |
|---|---|---|---|---|---|---|---|---|
| 150~800 | 1/2 | 15 | 79 | 9.5 | 21.8 | 164 | 100 | 1/2 |
| 150~800 | 3/4 | 20 | 92 | 12.7 | 27.1 | 203 | 100 | 3/4 |
| 150~800 | 1 | 25 | 111 | 17.5 | 33.8 | 224 | 125 | 1 |
| 150~800 | 11/4 | 32 | 120 | 23.8 | 42.6 | 205 | 160 | 11/4 |
| 150~800 | 11/2 | 40 | 152 | 28.6 | 48.7 | 300 | 180 | 11/2 |
| 150~800 | 2 | 50 | 172 | 36.5 | 61.1 | 355 | 200 | 2 |
| 900~1500 | 1/2 | 15 | 111 | 9.5 | 21.8 | 207 | 125 | 1/2 |
| 900~1500 | 3/4 | 20 | 120 | 12.7 | 27.1 | 240 | 160 | 3/4 |
| 900~1500 | 1 | 25 | 152 | 17.5 | 33.8 | 258 | 160 | 1 |
| 900~1500 | 11/4 | 32 | 172 | 23.8 | 42.6 | 330 | 180 | 11/4 |
| 900~1500 | 11/2 | 40 | 200 | 28.6 | 48.7 | 355 | 200 | 11/2 |
| 900~1500 | 2 | 50 | 200 | 36.5 | 61.1 | 370 | 220 | 2 |
