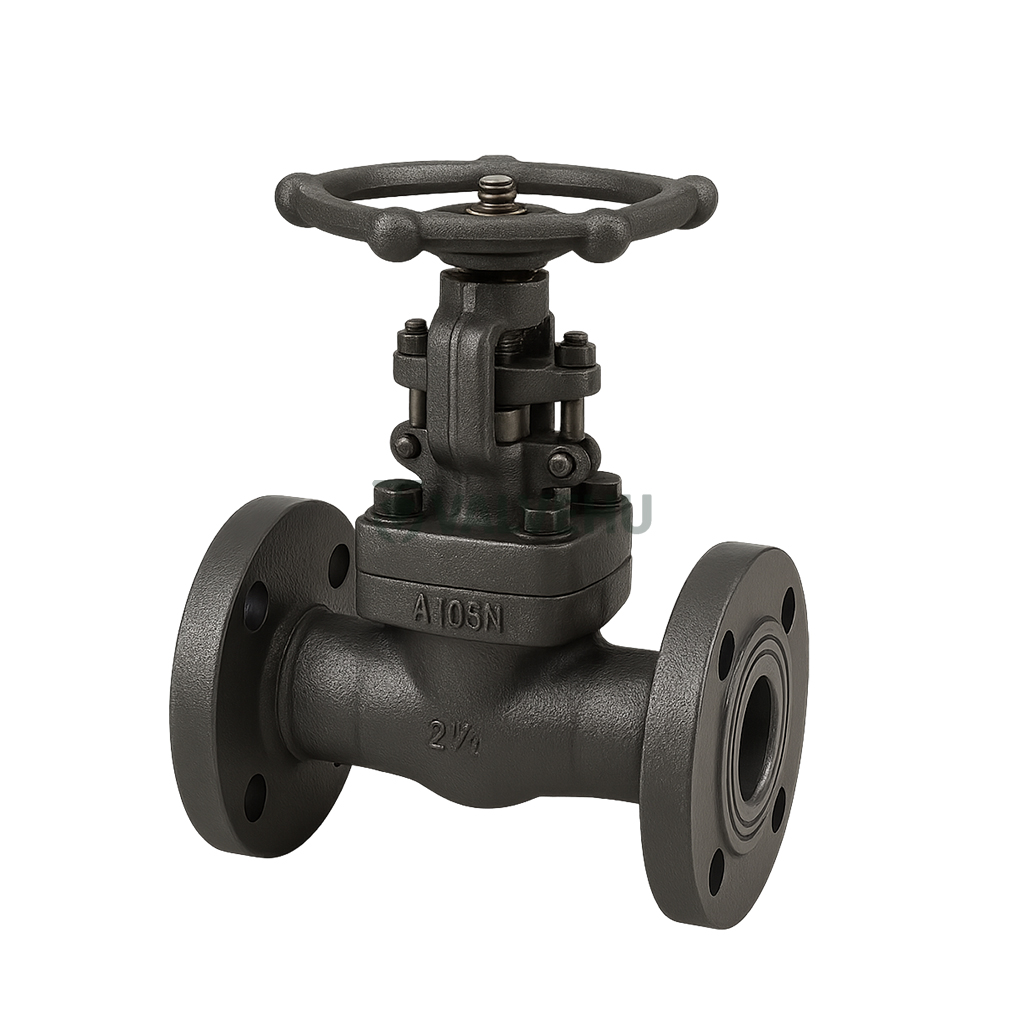

Buy Forged Steel Globe Valve Class150/300/600 A105 F22 SS304 Flanged Manual
The VALVEHU Globe Valve Class150–600 A105/F22/F304/F316 Flanged or BW Manual Operated is an industrial-grade flow control solution engineered for reliable shutoff in high-pressure and high-temperature systems. Designed and manufactured by VALVEHU, this valve meets ASME and ASTM standards, ensuring superior quality and global compatibility.
This globe valve features a rugged cast or forged steel body in a variety of materials such as ASTM A105 (carbon steel), F22 (alloy steel), and F304/F316 (stainless steel), making it suitable for a wide range of applications from petrochemical to thermal power plants. Available in pressure ratings Class 150, 300, and 600, and equipped with flange (RF) or butt weld (BW) end connections, it offers unmatched installation flexibility and performance across pipeline systems.
The design includes precision-machined seating surfaces and SS + PTFE packing for tight shutoff and extended life under harsh conditions. Its manual handwheel operation allows for controlled and safe flow regulation. Each valve undergoes strict quality control in accordance with API and ANSI standards, ensuring reliability even in demanding environments up to 550°C depending on body material.
Whether you’re selecting a globe valve for throttling service or positive shutoff, this product guarantees mechanical integrity and operational durability. Engineered for industries requiring flow accuracy, pressure integrity, and corrosion resistance, the VALVEHU globe valve stands out for its material versatility and proven performance.
For buyers across energy, chemical, oil & gas, and steam systems, this valve is an ideal long-term investment. If you’re exploring dependable globe valves or unsure about the right specifications for your system, contact our specialists at VALVEHU in China. We’re here to guide you toward the best solution for your flow control challenges.
Technical Specifications
- Valve Type: Globe Valve
- Pressure Class: Class 150 / 300 / 600
- Body Material: A105 / F22 / F304(L) / F316(L)
- Connection Type: Flanged (RF) or Butt Weld (BW)
- Operation Method: Manual Handwheel
- Design Standard: ASME B16.34 / API Spec
- Temperature Range: -29°C to 550°C (depending on material)
- Seat Material: SS + PTFE or metal-to-metal
- End-to-End Dimensions: Conforming to standard RF/BW sizes
- Brand: VALVEHU
Main Parts Material Specification (According to ASTM Standards)
| No. | Part Name | CS to ASTMType A105 | AS to ASTMType F22 | SS to ASTMType F304(L) | SS to ASTMType F316(L) |
|---|---|---|---|---|---|
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Bonnet | A276 420 | A276 304 | A276 304 | A276 316(L) |
| 3 | Seat | A276 410 & 430 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 4 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 5 | Disc | Cr Plated SS + Graphite | Cr Plated SS + Graphite | SS + PTFE | SS + PTFE |
| 6 | Bonnet Cover | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 7 | Stud Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 8 | Bolt | A276 420 | A276 420 | A276 304 | A276 316 |
| 9 | Packing Gland | A276 410 | A276 410 | A182 F304(L) | A182 F316(L) |
| 10 | Bolt Nut | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 11 | Gland Flange | A105 | A182 F11 | A182 F304(L) | A182 F316(L) |
| 12 | Hex Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 13 | Yoke Nut | A276 410 | A276 410 | A276 410 | A276 410 |
| 14 | Lock Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 15 | Nameplate | SS | SS | SS | SS |
| 16 | Handwheel | A197 | A197 | A197 | A197 |
| 17 | Thrust Washer | A473 431 | A473 431 | A473 431 | A473 431 |
| 18 | Packing | Flexible Graphite | Flexible Graphite | PTFE | PTFE |
| Applicable Media | Water, Oil, Gas, etc. | Water, Oil, Gas, etc. | Acid, Acetic Acid, etc. | Acid, Acetic Acid, etc. | |
| Applicable Temperature | -29°C ~ 425°C | -29°C ~ 550°C | -29°C ~ 180°C | -29°C ~ 180°C |
Main Dimensions and End Connection Sizes
| NPS | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ |
|---|---|---|---|---|---|---|
| L (RF) – Class150 | 108 | 117 | 127 | 140 | 165 | 203 |
| L (RF) – Class300 | 140 | 152 | 165 | 178 | 190 | 216 |
| L (RF) – Class600 | 165 | 190 | 216 | 229 | 241 | 292 |
| L (BW) – Class150 | 108 | 117 | 127 | 140 | 165 | 203 |
| L (BW) – Class300 | 140 | 152 | 165 | 178 | 190 | 216 |
| L (BW) – Class600 | 165 | 190 | 216 | 229 | 241 | 292 |
| H – Class150/300 | 158 | 169 | 197 | 236 | 246 | 283 |
| H – Class600 | 169 | 197 | 236 | 246 | 283 | 320 |
| W (Handwheel Diameter) | 100 | 100 | 125 | 160 | 160 | 180 |
FAQ
What pressure ratings are available for this globe valve?
Class 150, 300, and 600 are available to match diverse pressure system needs.
Which materials are used for the valve body?
Options include A105 (carbon steel), F22 (alloy steel), and F304/F316 stainless steel.
What industries is this valve suitable for?
Ideal for oil & gas, petrochemical, thermal power, and general process industries.
Does this valve support high-temperature applications?
Yes, up to 550°C, depending on the selected material grade.
What connection types are offered?
Standard flanged (RF) and butt weld (BW) end connections are supported.
