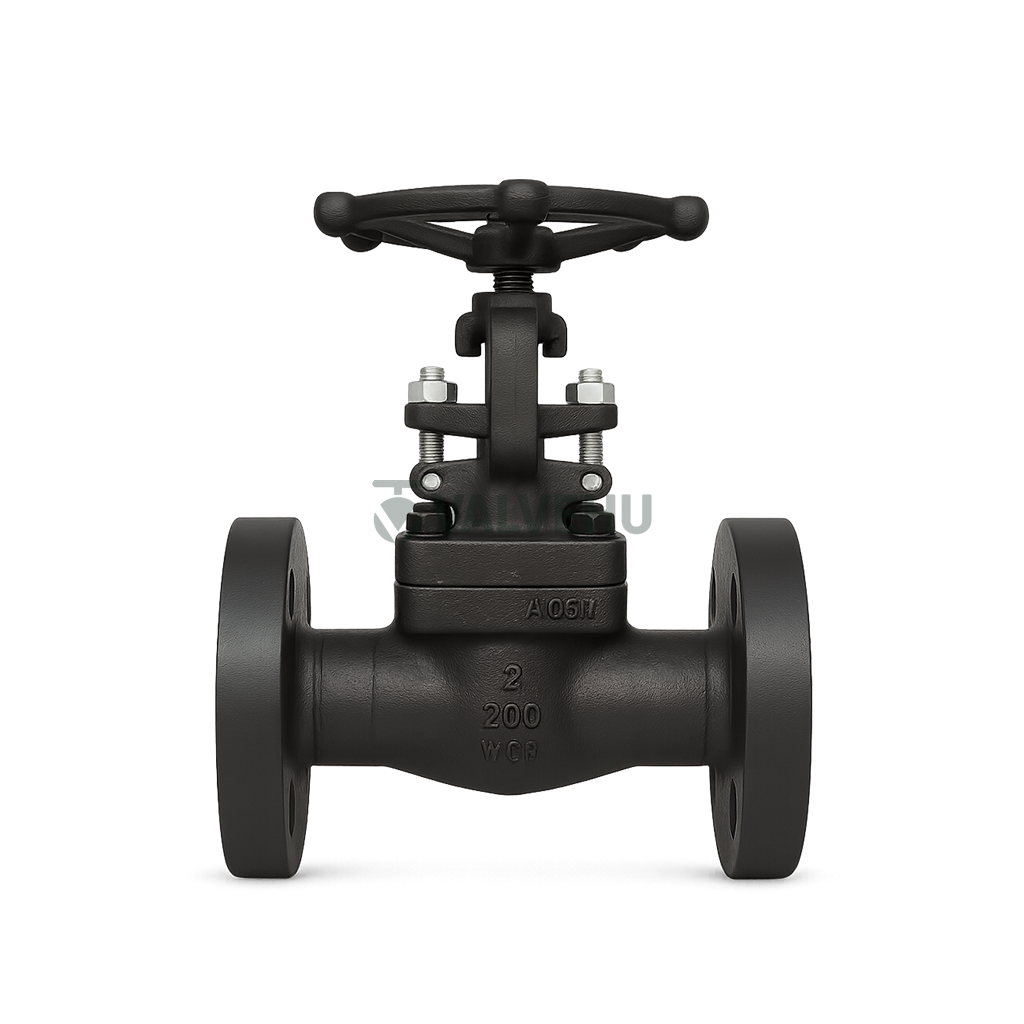

Buy Forged Globe Valve Class150/300/600 F316 Body Flanged Ends Manual Handwheel
The VALVEHU Globe Valve Class150–600 A105/F22/F304/F316 Flanged or BW Manual Operated is a robust industrial valve designed to provide precise throttling and shut-off control in critical pipeline applications. Manufactured by VALVEHU, this valve adheres to stringent international standards including ASME B16.34, ensuring both reliability and long-term performance in industrial environments.
Built with high-integrity materials such as ASTM A105 carbon steel, F22 alloy steel, and F304(L)/F316(L) stainless steels, this globe valve is engineered to operate in challenging conditions involving corrosive media, high pressure, or elevated temperatures. Its pressure ratings range across Class 150, 300, and 600, giving users operational flexibility across diverse systems and specifications.
The design incorporates a bolted bonnet, precision-machined seating surfaces, and optional soft sealing with PTFE for enhanced tightness. This model is available in Raised Face (RF) flange or Butt Weld (BW) end connections, making it suitable for seamless integration into standard industrial piping.
The rising stem and handwheel-operated mechanism ensure dependable flow control with minimal effort. Packing materials are available in graphite or PTFE depending on service requirements. Internal components such as the disc, stem, and gland are constructed using corrosion-resistant alloys to maintain performance and reduce wear.
This forged globe valve is suitable for service across water, steam, oil, gas, and certain acids, with temperature compatibility up to 550°C for F22 and up to 180°C for stainless variants. Whether used in petrochemical, power generation, or refinery systems, it ensures reliable shut-off and minimal leakage.
For personalized selection assistance or larger projects, contact the VALVEHU technical team in China. We’re ready to support your application needs with expert guidance and high-performance valve solutions.
Technical Specifications
- Valve Type: Globe Valve
- Pressure Class: Class 150 / 300 / 600
- Body Material: A105 / F22 / F304(L) / F316(L)
- Connection Type: Flanged (RF) or Butt Weld (BW)
- Operation: Manual Handwheel
- Design Standard: ASME B16.34
- Packing Material: Flexible Graphite or PTFE
- Disc Options: Metal or SS + PTFE soft seal
- Max Temperature: Up to 550°C (F22), 180°C (SS)
- Media Compatibility: Water, steam, oil, gas, acids
Main Component Material Specification (According to ASTM Standards)
| No. | Part Name | CS to ASTM Type A105 | AS to ASTM Type F22 | SS to ASTM Type F304(L) | SS to ASTM Type F316(L) |
|---|---|---|---|---|---|
| 1 | Body | A105 | A182 F22 | A182 F304(L) | A182 F316(L) |
| 2 | Disc | Cr-plated SS + Graphite | Cr-plated SS + Graphite | SS + PTFE | SS + PTFE |
| 3 | Bonnet Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 4 | Bonnet Stud | A276 420 | A276 420 | A276 304 | A276 316 |
| 5 | Gland Packing Sleeve | A276 410 | A276 410 | A182 F304(L) | A182 F316(L) |
| 6 | Gland Bolt | A193 B7 | A193 B16 | A193 B8 | A193 B8M |
| 7 | Gland Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 8 | Yoke Nut | A276 410 | A276 410 | A276 410 | A276 410 |
| 9 | Handwheel Nut | A194 2H | A194 4 | A194 8 | A194 8M |
| 10 | Nameplate | SS | SS | SS | SS |
| 11 | Handwheel | A197 | A197 | A197 | A197 |
| 12 | Packing Gland Flange | A216 WCB | A216 WCB | A351 CF8 | A351 CF8 |
| 13 | Packing | Flexible Graphite | Flexible Graphite | PTFE | PTFE |
| 14 | Bonnet | A105 | A276 304 | A182 F304(L) | A182 F316(L) |
| 15 | Stem | A182 F6 | A182 F304 | A182 F304(L) | A182 F316(L) |
| 16 | Stem Nut | A276 420 | A276 304 | A276 304(L) | A276 316(L) |
| Applicable Media | Water, Oil, Gas | Water, Oil, Gas | Acids, Acetic Media | Acids, Acetic Media | |
| Applicable Temperature | -29°C ~ 425°C | -29°C ~ 550°C | -29°C ~ 180°C | -29°C ~ 180°C |
Main Dimensions & End Connection Sizes (Unit: mm)
| NPS | 1/2″ | 3/4″ | 1″ | 1-1/4″ | 1-1/2″ | 2″ |
|---|---|---|---|---|---|---|
| L (RF) – Class 150 | 108 | 117 | 127 | 140 | 165 | 203 |
| L (RF) – Class 300 | 152 | 178 | 203 | 216 | 229 | 267 |
| L (RF) – Class 600 | 165 | 190 | 216 | 229 | 241 | 292 |
| L1 (BW) – Class 150 | 108 | 117 | 127 | 140 | 165 | 203 |
| L1 (BW) – Class 300 | 152 | 178 | 203 | 216 | 229 | 267 |
| L1 (BW) – Class 600 | 165 | 190 | 216 | 229 | 241 | 292 |
| H – Class 150/300 | 166 | 171 | 207 | 240 | 258 | 330 |
| H – Class 600 | 171 | 207 | 240 | 258 | 330 | 380 |
| W (Handwheel Ø) | 100 | 100 | 125 | 160 | 160 | 180 |
