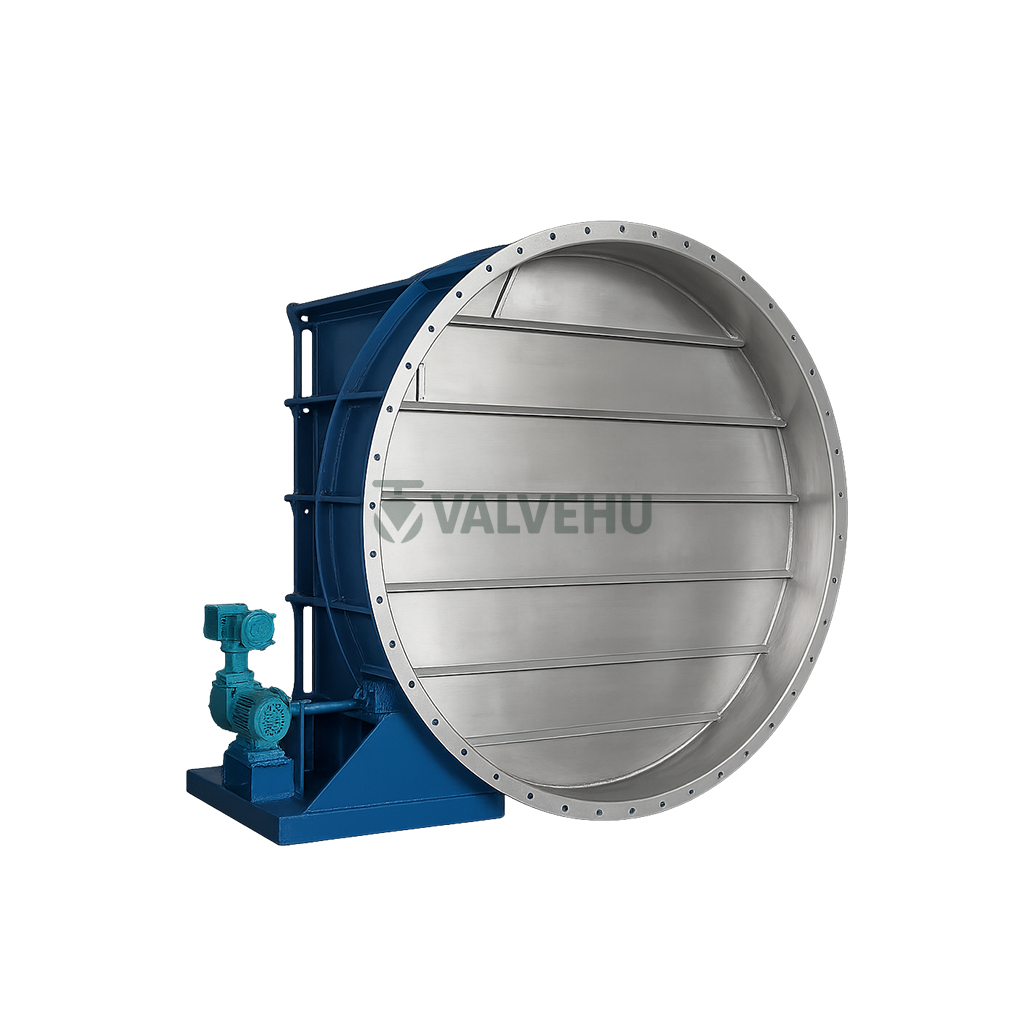

Buy Louver Damper Valve DBD-1 0.005MPa Stainless Steel Flanged Electric Actuated
The DBD-1 Electric Louver Damper Valve by VALVEHU is designed to deliver precise airflow regulation in large-diameter, low-pressure industrial duct systems. Built for control applications in metallurgy, building materials, chemical processing, power stations, and environmental engineering, this damper is highly suitable for dusty air, flue gases, and cold or hot ventilation pipelines.
Equipped with a robust electric actuator, the DBD-1 model allows for smooth modulation or shut-off of airflow. Its louvered blade design enhances aerodynamic efficiency, making it ideal for high-volume, low differential pressure systems. The valve structure integrates multiple air passages and efficient sealing, providing leak rates under 3% and full closing within approximately 25 seconds.
With a nominal pressure rating of 0.005 MPa and operating temperature range from -30°C to 350°C, this electric damper performs reliably in diverse industrial conditions. It supports input signals such as 4–20mA or 0–10mA, and standard electrical supply is 220V ±20V at 50Hz. The low-resistance stainless steel or galvanized body offers long service life and corrosion protection.
Connection is achieved through flanged ends, ensuring compatibility with standard pipeline setups. Sizes are available from DN500 to DN1600, accommodating larger ductwork applications. The modular build also allows integration with various actuator types for custom control needs.
Whether you require automated regulation of gas or dust-laden air, the DBD-1 series damper valve provides reliability, precision, and low maintenance. For tailored selection support and competitive factory-direct pricing, contact the expert sales engineers at VALVEHU in China. We’re ready to assist in your next industrial valve project.
Technical Specifications
- Model: DBD-1
- Valve Type: Electric Louver Damper
- Nominal Pressure: 0.005 MPa
- Temperature Range: -30°C to 350°C
- Leakage Rate: ≤3%
- Actuation Time: Approx. 25 seconds
- Control Signal Input: 4–20mA or 0–10mA
- Power Supply: 220V ±20V, 50Hz
- Flow Velocity Limit: ≤25 m/s
- Connection Type: Flanged end
Main Performance Parameters – DBD-1 Electric Louver Damper Valve
| Parameter | Value |
|---|---|
| Nominal Pressure (PN) | 0.005 MPa |
| Operating Temperature Range | -30°C to +350°C |
| Applicable Medium | Dust-laden air and gas |
| Leakage Rate | ≤3% |
| Valve Opening/Closing Time | ≤25 seconds |
| Input Signal (DC) | Type II: 0–10mA; Type III: 4–20mA |
| Number of Input Channels | 3 |
| Input Resistance | Type II: 220Ω; Type III: 250Ω |
| Power Supply | 220V ±20V / 50Hz |
| Medium Flow Velocity | ≤25 m/s |
Main Connection Dimensions – DBD-1 Electric Louver Damper Valve (Unit: mm)
| DN (Nominal Diameter) | D1 (Bolt Circle Diameter) | D (Flange Outer Diameter) | H (Total Height) | H1 (Body Height) | L (Face-to-Face Length) | L1 (Actuator Base Length) | b (Flange Thickness) | z–φd (No. × Hole Dia.) |
|---|---|---|---|---|---|---|---|---|
| 500 | 555 | 600 | 1270 | 900 | 220 | 300 | 8 | 20–φ18 |
| 600 | 655 | 700 | 1370 | 950 | 220 | 300 | 10 | 20–φ18 |
| 700 | 755 | 800 | 1470 | 1000 | 240 | 300 | 10 | 24–φ18 |
| 800 | 870 | 930 | 1640 | 1120 | 240 | 365 | 10 | 24–φ23 |
| 900 | 970 | 1030 | 1740 | 1170 | 260 | 365 | 12 | 24–φ23 |
| 1000 | 1130 | 1130 | 1840 | 1220 | 260 | 365 | 12 | 28–φ23 |
| 1120 | 1190 | 1250 | 2110 | 1430 | 280 | 420 | 14 | 28–φ23 |
| 1250 | 1320 | 1380 | 2240 | 1495 | 280 | 420 | 14 | 32–φ23 |
| 1400 | 1470 | 1530 | 2390 | 1570 | 300 | 420 | 14 | 36–φ23 |
| 1600 | 1670 | 1730 | 2660 | 1745 | 320 | 450 | 14 | 40–φ23 |
FAQ
What is the operating pressure of the DBD-1 valve?
This valve operates at a nominal pressure of 0.005 MPa, ideal for low-pressure duct applications.
What actuator signal does this damper support?
It supports II type 0–10mA or III type 4–20mA standard control input signals.
Can the DBD-1 be used in hot gas or flue systems?
Yes, it is designed for air temperatures ranging from -30°C to 350°C, including hot gases.
What is the typical closing time of this electric damper?
The valve closes in approximately 25 seconds under standard operating conditions.
Is this damper valve suitable for dusty airflow?
Yes, it is specifically built for dust-laden airflow and ventilation systems in industrial settings.
