Buy Industrial Globe Valve DIN WJ41H and ZDAWJ41 ASME Flanged Manual Cast Steel

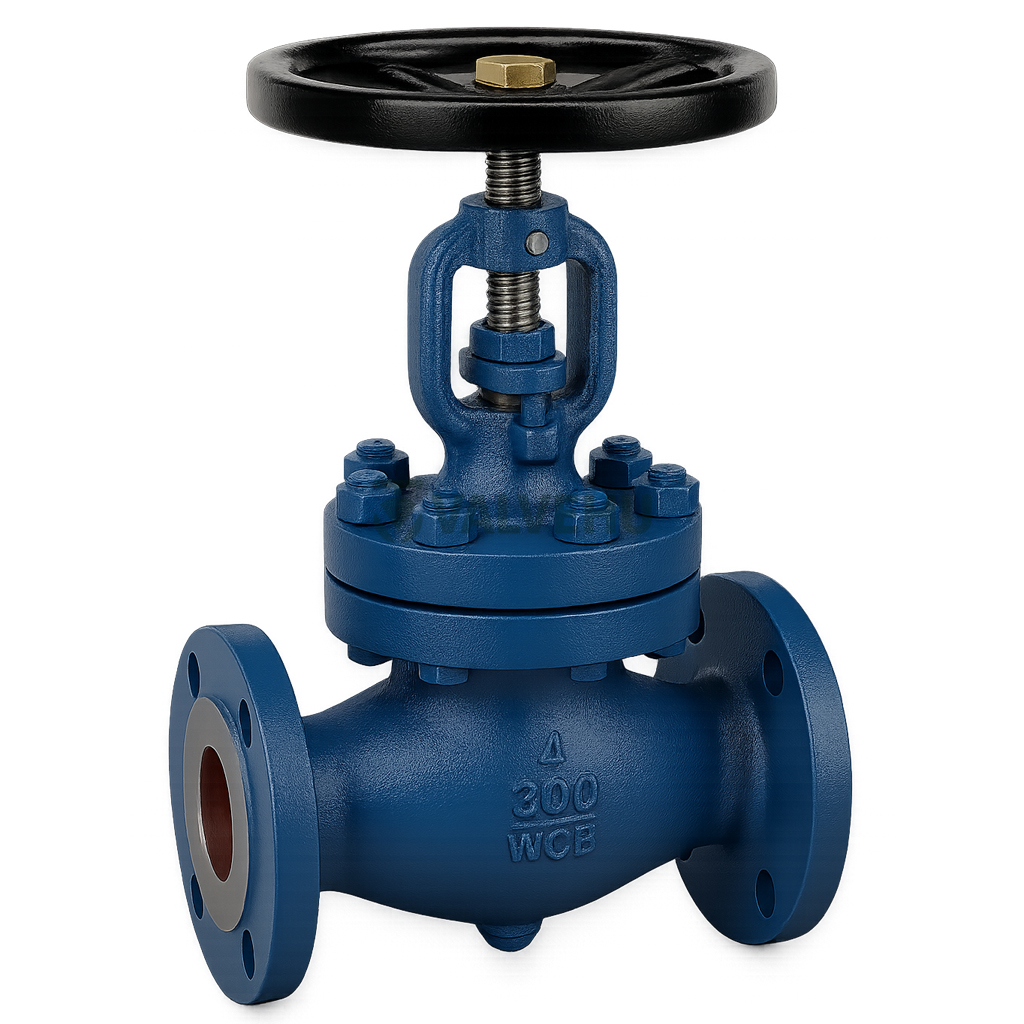

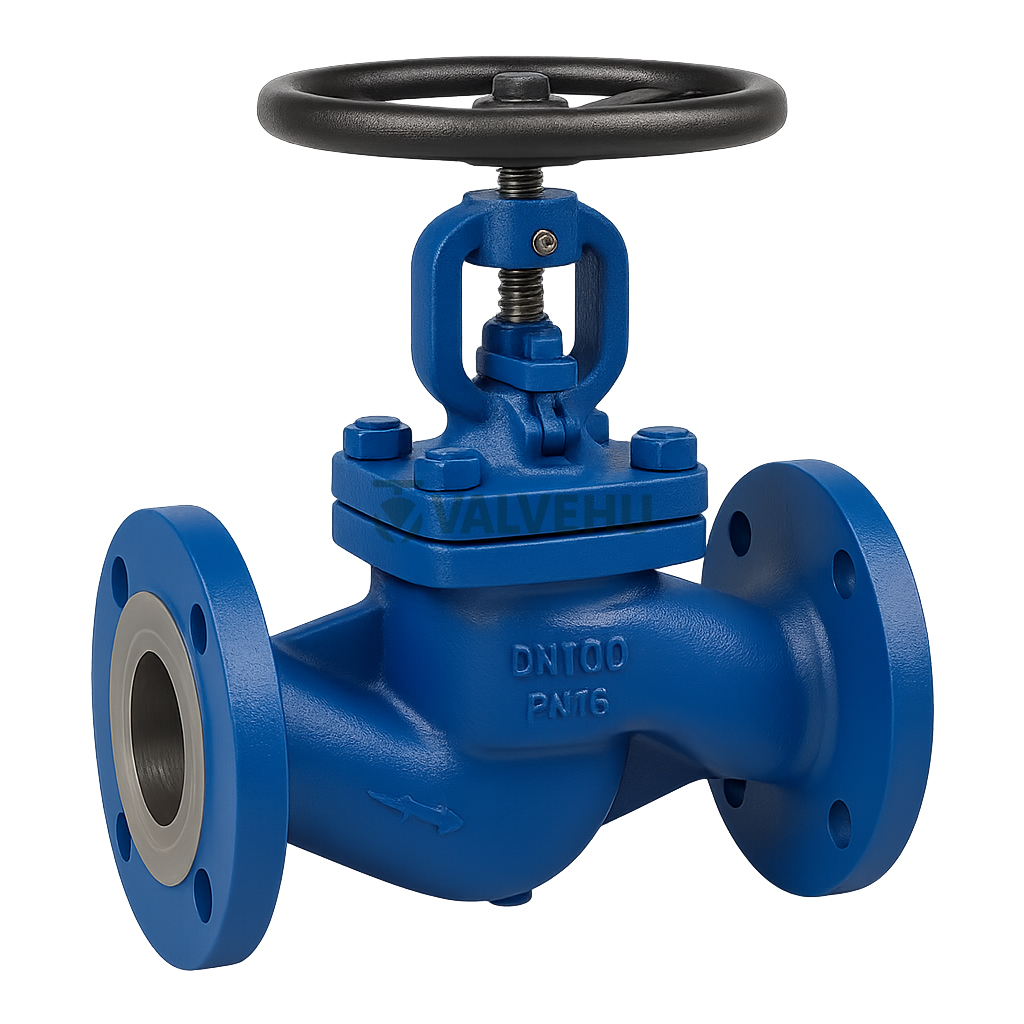

The Cast Steel Globe Valve DIN WJ41H–16C / ASME ZDAWJ41–150LB from VALVEHU is engineered for high-performance shut-off and flow regulation in industrial systems. This valve is available in both DIN and ANSI configurations, covering pressure classes from 150LB to 300LB and DN sizes from 15 to 350 mm. It features a flanged end design that adheres to ASME B16.5 and DIN 2543–2545, ensuring easy installation across a variety of pipelines.
Manufactured with BB–BG–OS & Y construction, this manual valve provides a reliable sealing mechanism and superior thermal stability under demanding conditions. The rugged cast steel body can handle temperatures up to 350°C, making it ideal for steam, water, and oil media. The seat and shell undergo stringent testing according to API 598 and DIN 3230–81 standards to ensure long-lasting integrity and zero leakage.
Both DIN and ANSI options are offered with consistent face-to-face lengths and flange dimensions compliant with international standards (ASME B16.10, DIN 3202-F1), supporting interchangeability in global systems. Compact yet durable, this product meets the practical needs of industries such as petrochemical, power generation, and general process control.
If you are looking for robust shut-off solutions with compliance to both European and American standards, our team at VALVEHU China is ready to help you find the exact model or spec you need. Contact our valve experts now.
Technical Specifications
- Body Material: Cast Steel (WCB)
- Standards Compliance: DIN 3356, ASME B16.10, API 598
- Pressure Ratings: 150LB / 300LB
- Test Pressure: Shell: up to 22.5 MPa, Seat: up to 16.5 MPa
- Temperature Range: ≤ 350°C
- Connection Type: Flanged (DIN / ASME)
- Actuation: Manual by default, optional Electric or Pneumatic
- Valve Design: BB–BG–OS & Y
- Media Compatibility: Water, Steam, Oil
- Size Range: DN15 to DN350
Technical Specifications – DIN/ASME Globe Valve
| Specification Item | Standard / Description |
|---|---|
| Structure Type | BB–BG–OS & Y |
| Actuation Method | Manual, Electric, Pneumatic |
| Design Standard | ASME B16.10, BS1873, DIN 3356-82 |
| Face-to-Face Dimension | ASME B16.10, DIN 3202–F1 |
| Flanged End Standard | ASME B16.5, DIN 2543–2545 |
| Test and Inspection | API 598, DIN 3230–81 |
Performance Parameters – ANSI Globe Valve (Unit: MPa / °C)
| Nominal Pressure (LB) | Shell Test Pressure (MPa) | Seat Test Pressure (MPa) | Operating Temperature (°C) | Applicable Media |
|---|---|---|---|---|
| 150 | 3.0 | 2.2 | ≤350 | Water, Steam, Oil, etc. |
| 300 | 7.5 | 5.5 | ≤350 | Water, Steam, Oil, etc. |
| 600 | 15.0 | 11.0 | ≤350 | Water, Steam, Oil, etc. |
| 900 | 22.5 | 16.5 | ≤350 | Water, Steam, Oil, etc. |

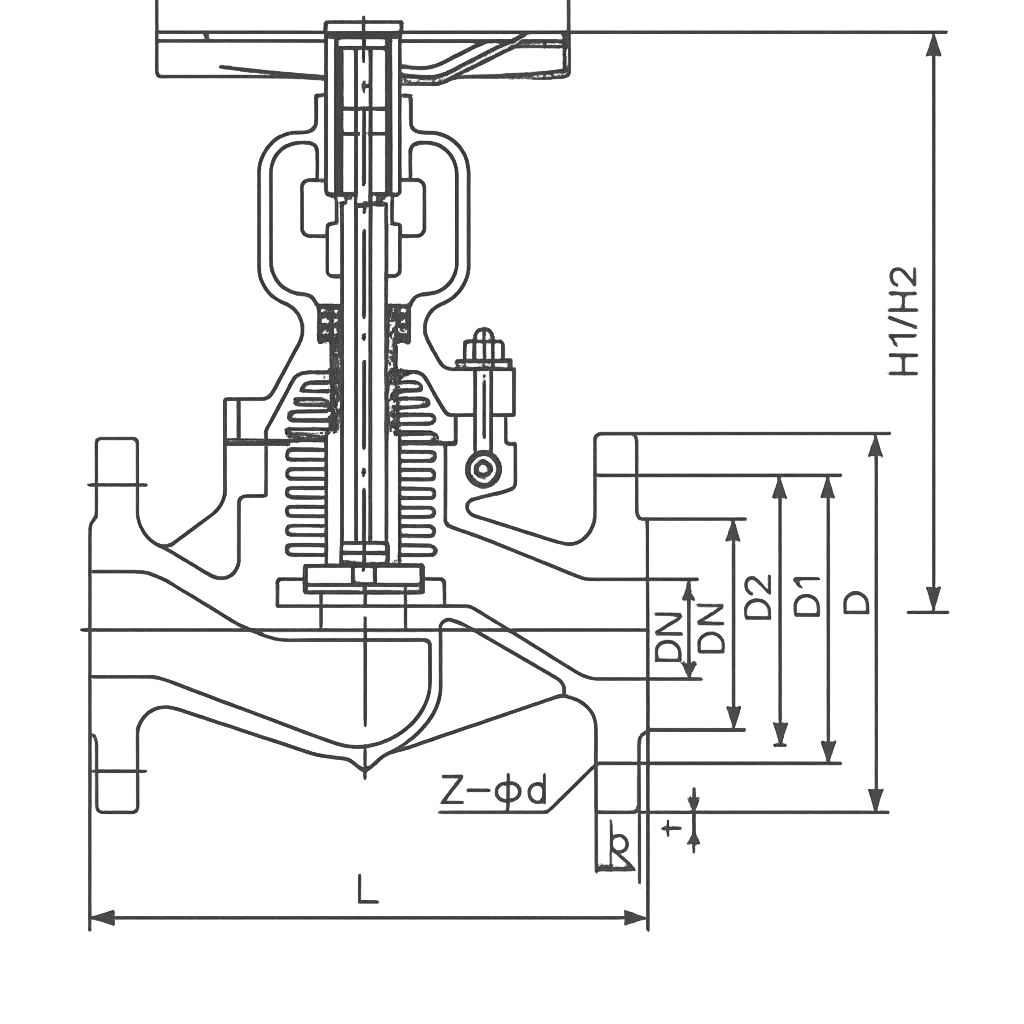

Main Dimensions and Connection Sizes – DIN Bellows Globe Valve
Unit: mm
| DN | L | D | D1 | D2 | f | b (16C/25C) | z–Φd (16P/25P) | D0 | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 15 | 130 | 95 | 65 | 45 | 2 | 14 | 4–Φ14 | 120 | 191 | 197 |
| 20 | 150 | 105 | 75 | 55 | 2 | 16 | 4–Φ14 | 140 | 191 | 197 |
| 25 | 160 | 115 | 85 | 65 | 2 | 16 | 4–Φ14 | 140 | 197 | 205 |
| 32 | 180 | 135 | 100 | 78 | 2 | 18 | 4–Φ18 | 160 | 200 | 208 |
| 40 | 200 | 145 | 110 | 85 | 2 | 18 | 4–Φ18 | 200 | 218 | 231 |
| 50 | 230 | 160 | 125 | 100 | 2 | 20 | 4–Φ18 | 200 | 220 | 233 |
| 65 | 290 | 180 | 145 | 100 | 2 | 20 | 8–Φ18 | 240 | 238 | 254 |
| 80 | 310 | 195 | 160 | 135 | 2 | 22 | 8–Φ18 | 240 | 257 | 277 |
| 100 | 350 | 215/230 | 180/190 | 155/160 | 2 | 24 | 8–Φ18/23 | 320 | 340 | 365 |
| 125 | 400 | 245/270 | 210/220 | 185/188 | 2 | 26/28 | 8–Φ18/25 | 360 | 360 | 392 |
| 150 | 450 | 280/300 | 240/250 | 210/218 | 2 | 28/30 | 8–Φ23/25 | 360 | 390 | 420 |
| 200 | 600 | 335/360 | 295/310 | 265/278 | 2 | 30/34 | 12–Φ23/25 | 500 | 530 | 580 |
Main Dimensions and Connection Sizes – ANSI Bellows Globe Valve
Models: (ZDA)WJ41–150LB / (ZDA)WJ41–300LB
Pressure Ratings: 150LB / 300LB
Unit: mm
| DN (mm) | L (150LB/300LB) | H (150LB/300LB) | W (150LB/300LB) |
|---|---|---|---|
| 15 | 108 / 152 | 241 / 260 | 120 / 140 |
| 20 | 117 / 178 | 241 / 280 | 140 / 160 |
| 25 | 127 / 203 | 241 / 320 | 140 / 180 |
| 32 | 140 / 215 | 280 / 390 | 180 / 200 |
| 40 | 165 / 229 | 286 / 390 | 200 / 220 |
| 50 | 203 / 267 | 368 / 399 | 220 |
| 65 | 216 / 292 | 387 / 438 | 260 |
| 80 | 241 / 318 | 400 / 450 | 280 |
| 100 | 292 / 356 | 457 / 584 | 300 / 350 |
| 125 | 356 / 400 | 520 / 610 | 320 / 400 |
| 150 | 406 / 444 | 609 / 660 | 340 / 450 |
| 200 | 495 / 559 | 698 / 762 | 400 / 500 |
| 250 | 622 / 622 | 762 / 850 | 450 / 600 |
| 300 | 698 / 711 | 876 / 1085 | 450 / 720 |
| 350 | 787 / 838 | 990 / 1187 | 450 / 760 |
FAQ
What pressure classes are available for this valve?
This model supports ANSI 150LB, 300LB, 600LB, and 900LB standards.
Is the valve suitable for steam or thermal oil service?
Yes, it operates reliably with steam, oil, and water at temperatures up to 350°C.
Can this valve be used in both DIN and ASME pipeline systems?
Absolutely. It conforms to both DIN (WJ41H–16C) and ASME (ZDAWJ41–150LB) standards.
What type of end connections does it support?
This valve comes with flanged ends compliant with ASME B16.5 and DIN 2543–2545.
Does the valve meet international testing standards?
Yes, it’s tested according to API 598 and DIN 3230–81 for both shell and seat pressure.
